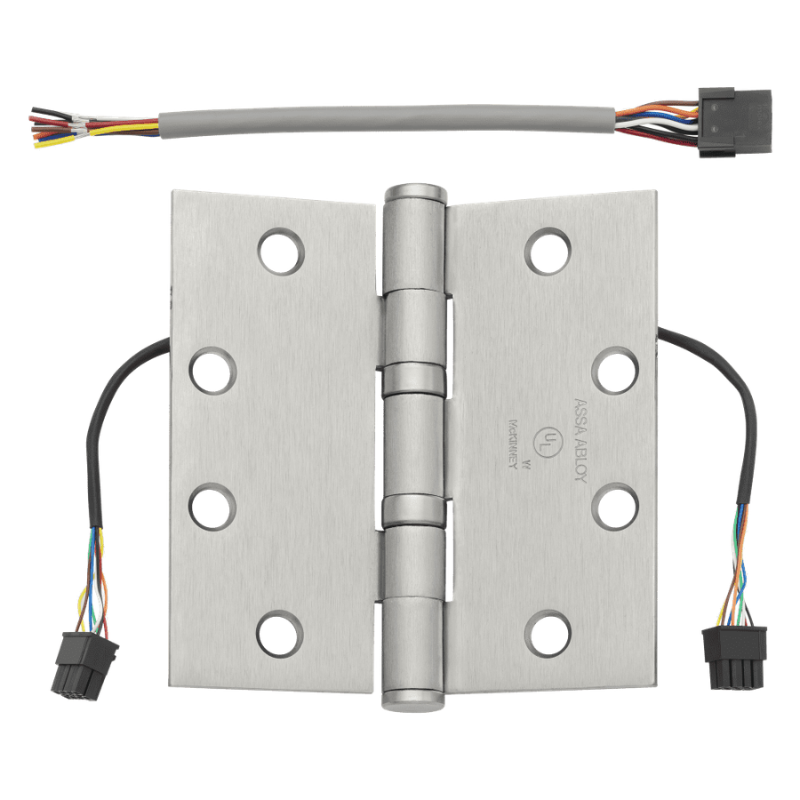

McKinney TA714-4-1/2x4-1/2-US26D-QC12 Electrified Full Mortise Standard Weight Concealed Bearing Hinge, Three Knuckle, 4-1/2" x 4-1/2", [12] Wires With Quick Connect, Square Corner, 626 Satin Chrome Finish

The McKinney TA714-4-1/2x4-1/2-US26D-QC12 is an electrified full mortise hinge engineered to transfer power from the door frame to the door edge for electronic locking and access control hardware. Built on McKinney's TA714 standard weight, three knuckle platform, it features concealed bearings for smooth, quiet operation and measures 4-1/2" x 4-1/2" with square corners. This model comes prewired with 12 wires and includes McKinney's Quick Connect (QC12) system for fast, plug-and-play installation. Finished in 626 Satin Chrome (US26D), it delivers a clean, durable appearance suited to commercial door openings that require reliable electric through-wiring.

Features

• Electrified full mortise hinge designed to carry power across the door opening for electronic hardware.

• Standard weight, three knuckle construction for dependable everyday performance.

• Concealed bearing design promotes smooth, quiet swing and long service life.

• Prewired with 12 conductors to support a range of electrified door functions.

• Quick Connect (QC12) technology simplifies field wiring and reduces installation time.

• 4-1/2" x 4-1/2" size with square corners for standard commercial applications.

• Attractive and durable 626 Satin Chrome (US26D) finish.

Functional Details

The electrified hinge routes concealed wiring through the knuckle, allowing power and signal to pass from the frame to the door leaf without exposed cabling. The Quick Connect system uses a factory-terminated connector so the hinge can be linked to the building's low-voltage wiring quickly and consistently.
