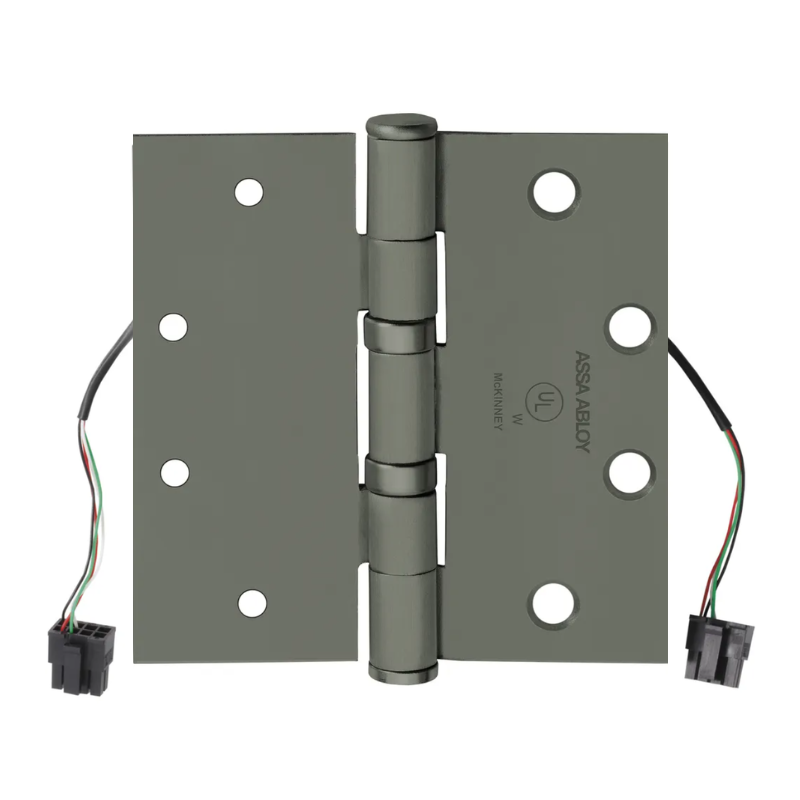

McKinney TB2714 4 1/2x4-1/2-USP-QC4 Electrified Quick Connect Prime Coated

The McKinney TB2714 is a standard weight, full mortar five-knuckle butt hinge built for high-traffic commercial openings that require electrified power transfer. Measuring 4-1/2" x 4-1/2", this electrified hinge integrates McKinney's Quick Connect (QC4) system with a 4-wire configuration, allowing power to pass discreetly from frame to door for electrified locks, exit devices, and other access control hardware. Finished in a durable prime coat (USP), it's ready for painting to match your project's specifications. With concealed bearings and precision-machined steel construction, the TB2714 delivers reliable, long-term performance on doors that see frequent use throughout the day.

Features

• Five-knuckle, standard weight design suited for medium to high-frequency commercial doors.
• Quick Connect QC4 system with four wires for streamlined electrified installation.
• Transfers low-voltage power from frame to door for electrified locking and access control devices.
• Concealed bearing construction for smooth, quiet operation.
• Prime coated (USP) finish ready for field painting.
• Standard 4-1/2" x 4-1/2" dimensions for broad compatibility.

Functional Details

The Quick Connect (QC) system routes low-voltage wiring through the hinge barrel, eliminating exposed cabling and simplifying the connection between the door and frame. The QC4 configuration provides four conductors to support electrified door hardware.

• Concealed electric power transfer through the hinge.
• Quick Connect wiring for fast, reliable installation.
• Available in multiple wire configurations to match hardware requirements.
