NGP 178SA OverLapping Astragal, Black Silicone Seal, 5/16" Height, 1 5/8" Width, Anodized Aluminum

Technical Specs

Product Specs

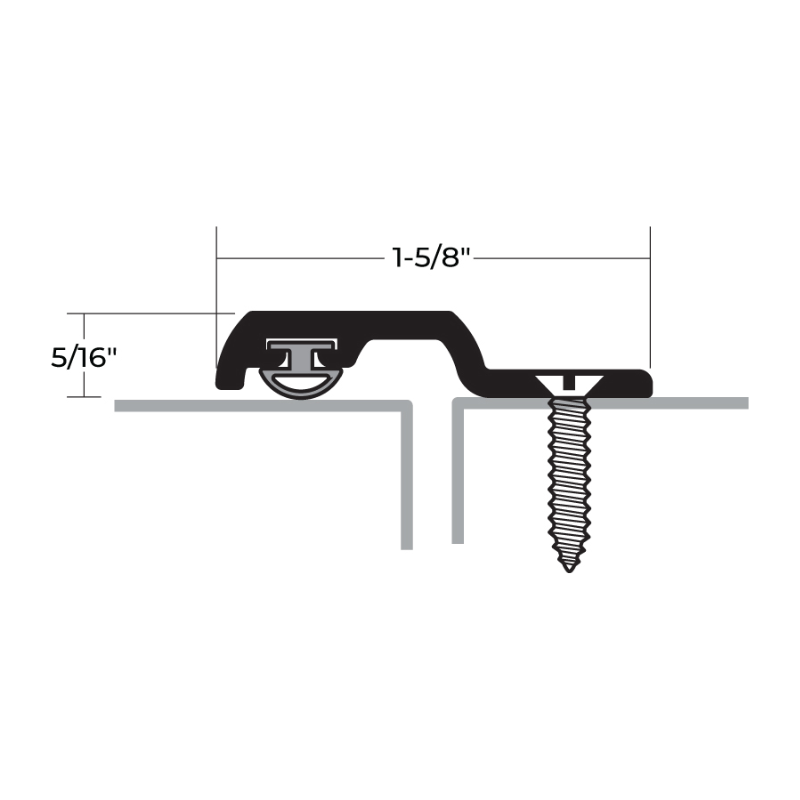

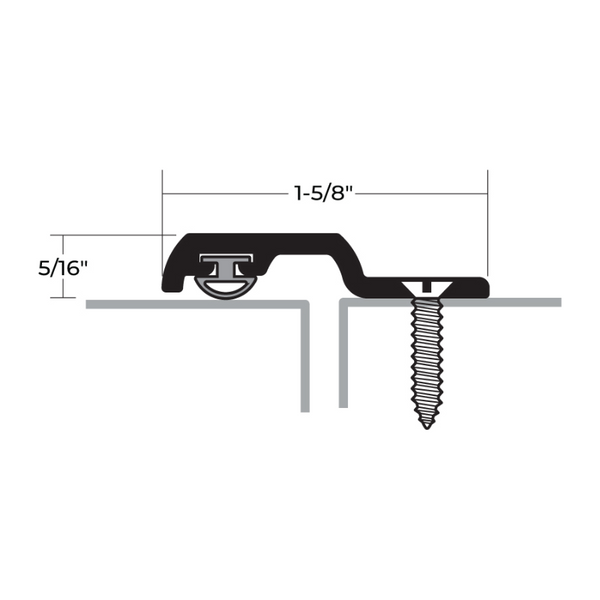

NGP 178SA OverLapping Astragal, Black Silicone Seal, 5/16" Height, 1 5/8" Width, Fasteners #10 x 3/4" SMS. Anodized aluminum

The NGP 178SA OverLapping Astragal is equipped with a black silicone seal, providing a 5/16" height and 1 5/8" width. Fasteners #10 x 3/4" SMS are included for secure installation. This anodized aluminum product is designed for efficient and durable use in various applications.

• Aluminum alloy 6063, T5 temper

• Synthetic rubber polymer: Siloxane

• Excellent flexibility and memory

• Flame resistant

• Moisture resistant

• Temperature range -100°F to 500°F, remains flexible at extreme temperatures

• Excellent resistance to ozone, UV and aging

• Recommended for areas using FM200 or Halon Fire Suppression Systems

• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold

• Maximum height 120"

• #10 X 3/4" SMS furnished

• Silicone is black

• Anodized aluminum
