Technical Specs
| Product Type | Thresholds |
Product Specs
| Manufacturer | NGP |
| SKU | RCE9 |
| Installation | Commercial |
| Unit of Measure | Each |
| Lengths | 30" |

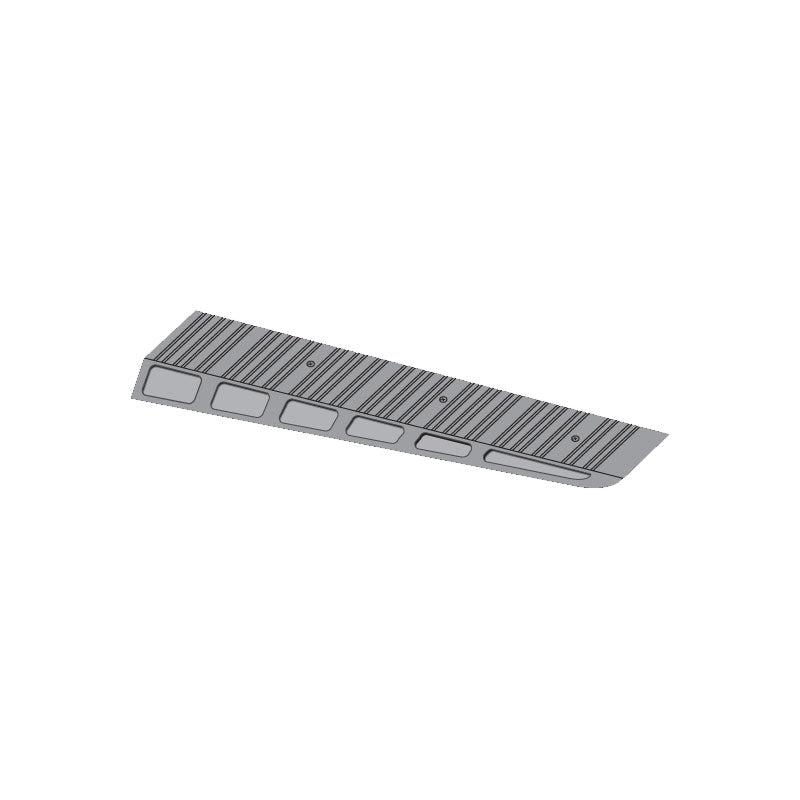

NGP RCE-30 Return Closed End Sets for Ramp Saddles, 30" Length
NGP RCE Return Closed End Sets add a polished touch to ramp thresholds. With various lengths available, they can be easily adjusted in the field to fit any ramp assembly. Sold in sets.
- RCE-30: 30" Mill Finish (Includes RCE-21 and 12" Extension)
RCE-30-DKB: 30" Dark Bronze (Includes RCE-21 and 12" Extension)
Compatible with
- NGP R200MILL, R200DKB, R200SIA (Needs to be trimmed to 24")
- NGP R225MILL, R225DKB, R225SIA (Needs to be trimmed to 27")
- NGP R250MILL, R250DKB, R250SIA
NGP (National Guard Products) RCE Features
- BHMA Certified to ANSI/BHMA A156.21 1,000 Lb. Load Test
- Return Closed Ends Provide an Attractive Finished Appearance to Ramps
- Available in Several Lengths and Can Be Trimmed to Accommodate Any Size Ramp Assembly
- Aluminum Alloy 6063, T5 Temper
- ADA Compliant: Barrier-Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes
- Positive Pressure: CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80, and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- ANSI/BHMA CERTIFIED: Certified thresholds comply with the American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
