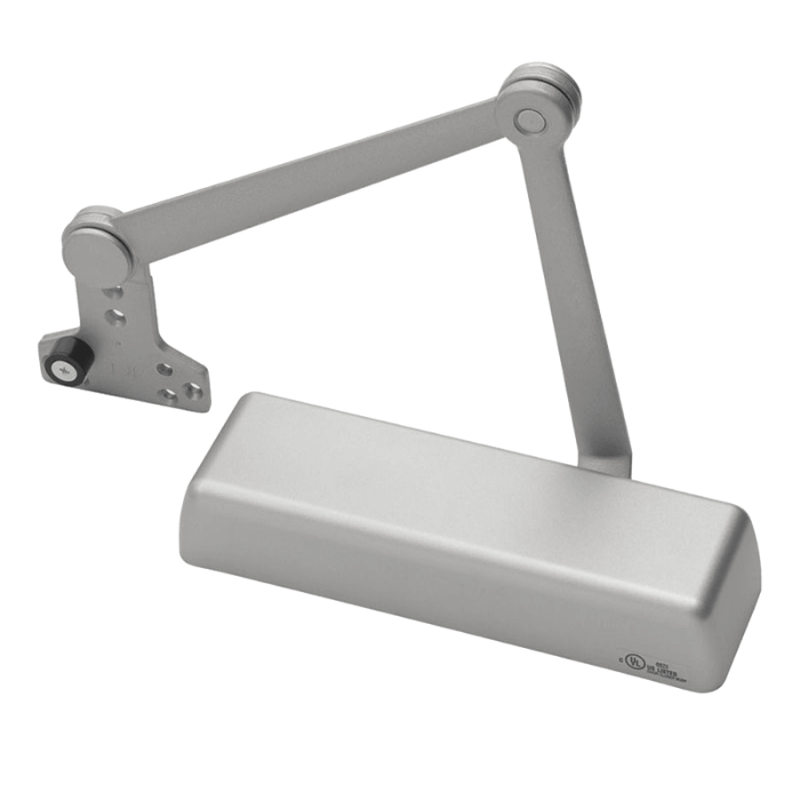

Norton 410XHDN Door Closer, Heavy Duty, Push-side Application, Non-Hold Open Arm with Removable Stop, Adjustable Size 1-6, Grade 1, Non Handed

The Norton 410XHDN Door Closer is a heavy-duty, surface-mounted hydraulic closer built for demanding push-side applications on interior and exterior doors. Part of Norton's 410 Series, it features a fully adjustable spring power spanning sizes 1 through 6, letting you tune closing force to fit door weight and traffic conditions. This model ships with a non-hold open regular arm fitted with a removable stop, providing controlled door positioning without hold-open function. Non-handed for either left or right doors, the 410XHDN carries a Grade 1 ANSI/BHMA rating and separate valves for latch speed, sweep speed, and backcheck, making it a reliable choice for commercial openings.

Features

• Heavy-duty cast aluminum body engineered for high-frequency commercial use.
• Adjustable spring power range covers sizes 1 through 6 for versatile door sizing.
• Non-hold open regular arm with a removable stop for controlled door movement.
• Non-handed design installs on left- or right-hand doors without modification.
• Independent hydraulic valves regulate latch speed, sweep speed, and backcheck.
• ANSI/BHMA Grade 1 rating for durability in busy environments.

Arm Type Details

The 410XHDN uses a non-hold open regular arm configured for push-side (parallel to the frame) mounting. The removable stop feature allows the arm to limit door swing at a set point, protecting walls and adjacent surfaces, while the non-hold open configuration ensures the door consistently returns to the closed position after each use.

Included Components

Each closer comes complete with the closer body, non-hold open regular arm assembly with removable stop, mounting hardware, and installation instructions for push-side application.
