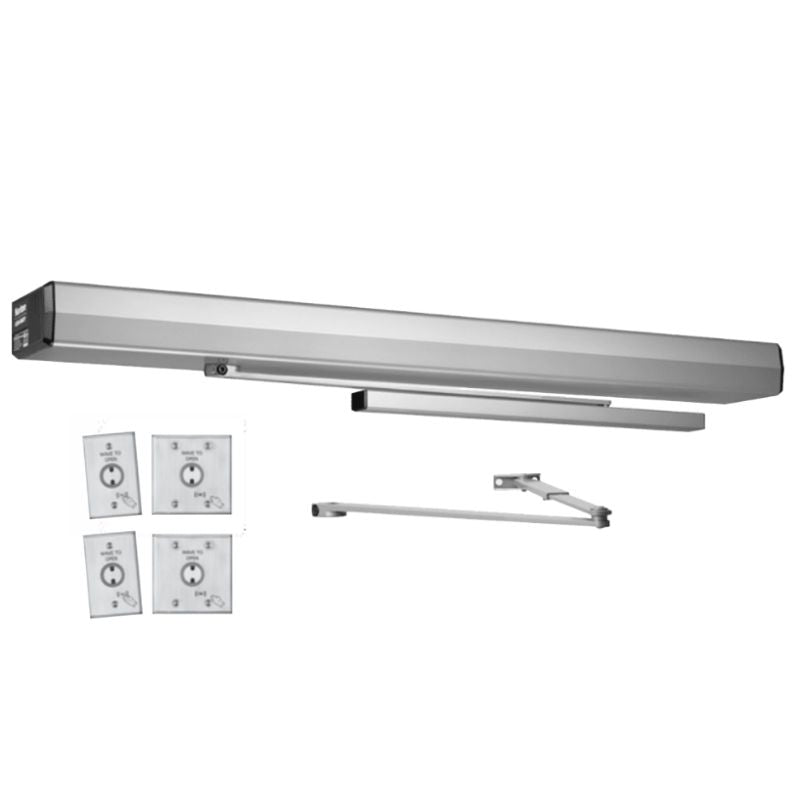

Norton 6342K2-689 Low Energy Door Operator, For Single 36"-48" Doors, Aluminum

  • SKU: 6342K2689

Norton 6342K2-689 Low Energy Door Operator, For Single 36"-48" Doors, Aluminum

  • SKU: 6342K2689
Sale price$5,258.00/ea
In Stock
In Stock

Norton 6342K2-689 Low Energy Door Operator, Surface Mount, Push or Pull Side, Slide Track or Top Jamb, Rigid Arm (Track) and Double Lever Arm Regular, Includes (2) 700 Touch Less Switches, For Single 36"-48" Doors, 200 Lbs. Max, Non-Handed, Aluminum

The Norton 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as power close, latch assist, and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and a new wifi interface via a mobile device make for easy installation and setup.

It cannot be used on a pair doors.

  • Power input 120 VAC, 3A, 60Hz
  • Current draw 1.5A
  • Power output 24VDC @ 1.3A max draw (fewer accessories)
  • ANSI/BHMA A156.19 certified
  • UL325/991 certified
  • UL10C listed for positive pressure fire test
  • Complies with requirements for the Americans with Disabilities Act (A.D.A)
  • Manufactured in an ISO 9001 and ISO 14001 certified facility
Manufacturer Norton
SKU 6342K2 689
Installation Commercial
Origin USA
Unit of Measure Each
Application For Single 36"-48" Doors
BAA Qualified Yes
Limited Warranty 2 Years
ADA Compliance Yes
Finish 689/US28
Finish Description Aluminum Painted
Finish Family Matte Silver


Type Surface
Technology Low Energy Door Operator
Mounting Location Push or Pull Side
Mounting Style Slide Track or Top Jamb
Hold Open Type Electric
Degree Hold Open Adjustable
Arm Type Double Lever Arm, Regular & Slide Track Arm, Standard
Degree Swing Up to 180 Deg.
Back Check Adjustable
Delay Yes
Cover Full
Door Size Min. 36 In. - Max 48 In.
Door Weight 254 lbs. Push, 198 lbs. Pull
Reveal Size 1/8 In.
Voltage 24V
Product Type Door Operators
