Description

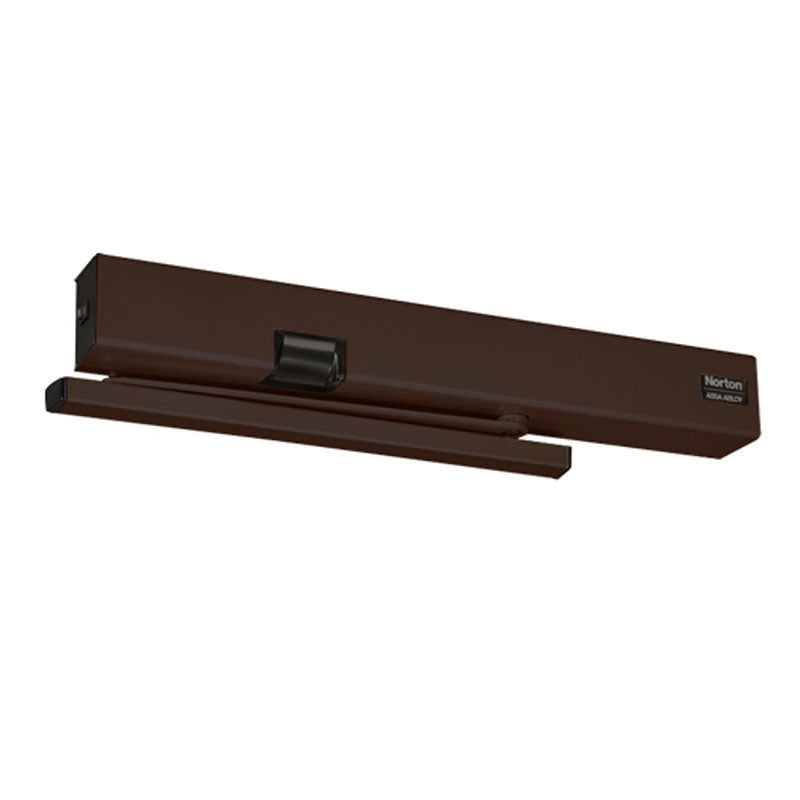

The Norton 7114SZ-690 is an Electromechanical Closer/Holder with a Motion sensor, is Pull Side mounted, has a rigid slide arm and track with a maximum reveal of 1/8", is handed, is for use with 28" to 44" doors, and comes in Dark Bronze 690 Finish. Norton 7114SZ-690 is available in both 120 VAC or 24 VDC voltage.
7100SZ Series Safe Zone
Designed with safety in mind, SafeZone® takes door closers to the next level.
SafeZone uses a multi-point, electromechanical closer and a programmable motion sensor. When the door is opened manually, SafeZone senses movement in the door opening and stops the door from closing. When movement is no longer detected, the adjustable setting times out and the door closes.
- Electromechanical closer units to be a multi-point, closer/holder type with selective hold open positioning achieved by electronic solenoid locking of closer arm slide into the track assembly. Closer/holder units to have a maximum opening of 180° (hold open to 175°) and are fail safe to close the door in the event of electrical power interruption.
- SafeZone Detection: Closer/holders units to have an integral sensor device monitoring a "zone of safety" at the door opening. SafeZone detection prevents the door from closing in the event of movement within the adjustable sensing field. Movement is detectable in both directions with selectable closer hold open time and sensor sensitivity. Mechanical closer to be hydraulic type with full rack and pinion construction enclosed in a cast aluminum alloy shell. Internal hydraulic fluid is to be non-gumming and non-freezing. Include two non-critical valves to independently regulate sweep and latching speeds and an adjustable backcheck cushioning valve. All valves are adjustable by hex key. Provide spring power adjustment permitting a 50% increase in closing power over the minimum closing force for any closer size.
- Mounting: Closer units can be surface mounted to the frame face for application on the pull (hinge side) side of door, or soffit mounted on the push side of the door frame with projection of no more than 2-5/8" (67mm) from the frame face. Frame face must be a minimum 2" and ceiling clearance a minimum of 4". Door must be hung on either butt hinges or 3/4" offset pivot hinges, minimum 1-3/4" to 2-1/4" thickness.
- Installation: Provide optional handheld remote device for programming SafeZone sensor settings. Auxiliary door stops are recommended at closer/holder openings and required at doors opening beyond 110°. Interior installation only.
- Power: Closer units operate on (120VAC, 60Hz) or (24VDC) with an amperage draw not exceeding (.086 Amps for 24VAC/DC) (.051 Amps for 120VAC). Supplier to coordinate electrical requirements with electrical and alarm system engineers. Field wiring (and conduit) by others.
Product Specs
Manufacturer | Norton |
SKU | 7114Z 690 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
Application | Rigid Arm, Slide Track, Pull Side |
Base Material | Varies |
BAA Qualified | Yes |
Limited Warranty | 2 Years |
Fire Rated | 3 Hours {A} |
Finish | 690/US20 |
Finish Description | Dark Bronze Painted |
Finish Family | Dark Bronze |
Technical Specs
Type | Surface |
Technology | Special Application |
Mounting Location | Pull Side |
Mounting Style | Slide Track |
Hold Open | Yes |
Hold Open Type | Electric |
Degree Hold Open | 175º Maximum |
Arm Type | Slide Track Arm Standard |
Hand | LH or RH |
Degree Swing | 180 Deg. |
Back Check | Adjustable |
Door Size | 28" to 44" |
Reveal Size | 1/8" Maximum |
Product Type | Surface Closers |
