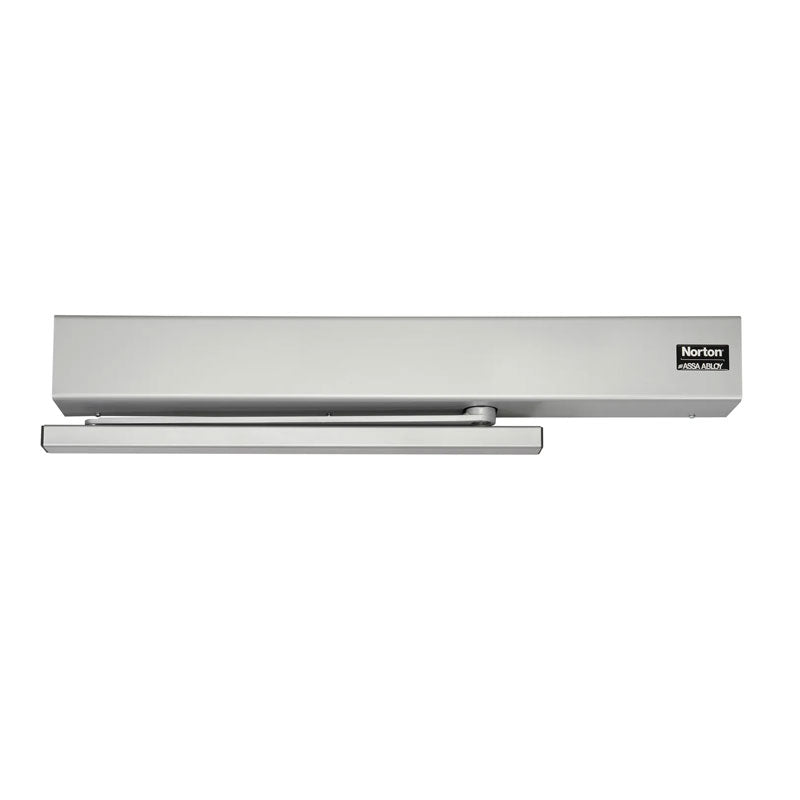

Norton 7253MPSO-24VDC-689 Electromechanical Closer, Double Egress Arm Slide Track, 1/8"-3" Reveal, 110 Degree, Size "3", MPSO Support, 24VDC, Aluminum

  • SKU: 7253MPSO24VDC689LH

Norton 7253MPSO-24VDC-689 Electromechanical Closer, Double Egress Arm Slide Track, 1/8"-3" Reveal, 110 Degree, Size "3", MPSO Support, 24VDC, Aluminum

  • SKU: 7253MPSO24VDC689LH
Sale price$2,821.00/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time
Handing: LH - Left Hand

The Norton 7253MPSO-24VDC-689 is a Electromechanical Closer, with a Double Egress Arm Slide Track, that has a 1/8" - 3" Reveal, goes 110 Degrees, is Size "3", has MPSO Selective Hold Open Support, is 24VDC, is handed and comes in 689 Aluminum finish. The Norton 7253MPSO-24VDC-689 is for use with doors up to 40" wide.

The 7200 Series electromechanical closer/holder combines the functionality of an electromechanical door holder with the proven reliability of a 7700 Series door closer.

Features

  • Multi-point hold open
  • Fixed spring sizes 3, 4, or 5
  • Push or pull side mounting (frame mounted)
  • Adjustable sweep and latch speed valves
  • Handed
  • Adjustable backcheck cushioning and position valve
  • Selective hold open (SHO) allows door to hold open at any degree of opening beyond a pre-set hold open point, up to 175°
  • Metal covers
  • Fail safe: solenoid will de-energize in the event of power failure
  • Concealed or surface wiring
  • Minimum 4" ceiling required
  • Auxiliary door stop is required for doors opening beyond 125° (pull side mounting)

Benefits

  • Adjustable hold open position allows application flexibility
  • Connected free swing arm option allows door to be held open at any degree
  • Doors automatically close if activated by fire alarm
ANSI/BHMA: ANSI/BHMA A156.15
UL: UL 10C positive pressure. UL-cUL Fire-Rated Up to 3 Hours.







Electromechanical Closer Handing
