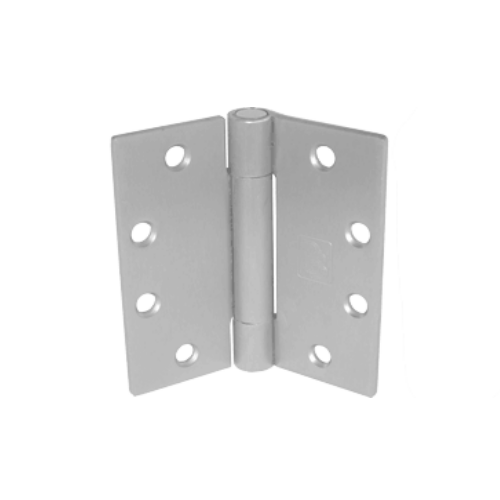

PBB 4C81 4-1/2" x 4-1/2" Concealed Bearing Hinge 3-Knuckle Full Mortise Heavy Weight
PBB 4C81 4-1/2" x 4-1/2" Concealed Bearing Hinge 3-Knuckle Full Mortise Heavy Weight, For use on heavy doors or doors receiving high-frequency usage. Concealed bearing-type hinges must be used on doors in conjunction with door closers and on all fire-rated openings.
Features
- Concealed bearing for trouble-free long-life application
- Hole in the bottom tip for easy pin removal
- Non-rising removable pin
- Attractive slim barrel with flush pins and plugs
- Full Mortise
- Wrought Steel
- All hinges are ANSI template
Specifications
| General Product Information: | PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
| Material: | Steel-Polished and Plated or Bonderized and Prime Coated for Painting |
| Hinge Swaging: | A standard swaging of our standard weight full mortise hinge, when closed to a parallel position, provides a 1/16" clearance between leaves |
| Material Gauge: | .180 ± .005 |
| Size: |
Height: 4.50 (+.000/-.015) Width: 4.50 (+.000/-.015) |
| Standard Screw Size: |
FHMS - 12-24 x 1/2" FHWS - 12 x 1-1/4" |
| Packing Information: |
One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton 16 unit carton or 48 hinges per master shipping carton 1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMs & AWS also available |
| Manufacturer: | PBB Inc. |
Certifications
| ANSI: | A8111 |
