Description

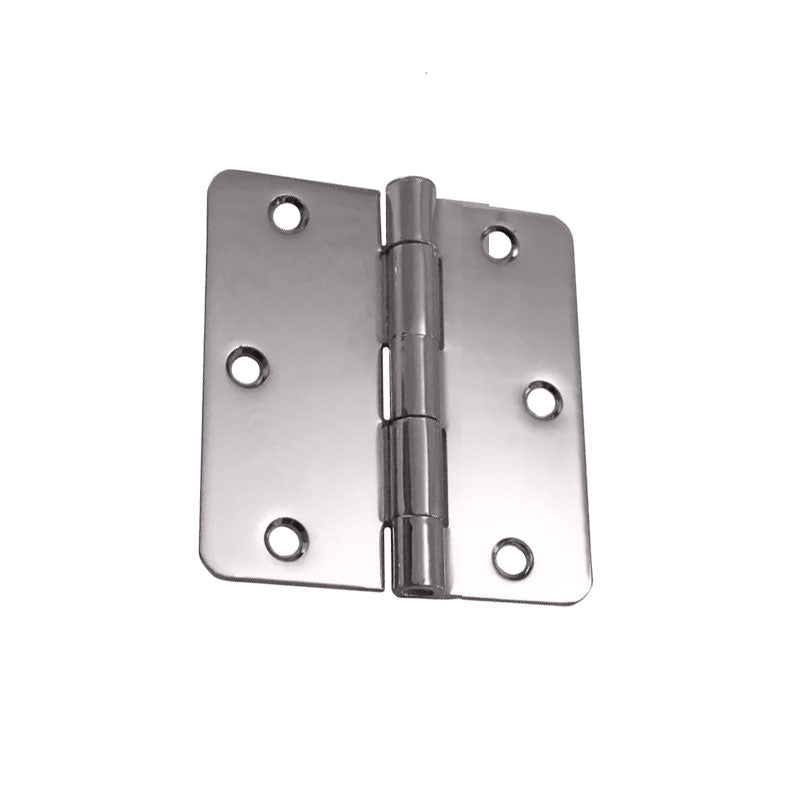

The PBB BB81 4-1/2" x 4" RC 1/4" US26D is a 5-Knuckle Full Mortise Standard Weight Ball Bearing Hinge, with 1/4" Radius Corners, and comes in Satin Chome Finish.
Features
- Full Mortise
- 1/4" Radius Corners
- Wrought Steel
- Standard weight
- All hinges are ANSI template
Specifications
| General Product Information: | PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
| Material: | Steel-Polished and Plated or Bonderized and Prime Coated for Painting |
| Material Gauge: | .134 ± .005 |
| Size: | Height: 4.50 (+.000/-.015) Width: 4.00 (+.000/-.015) |
| Standard Screw Size: | FHMS - 12-24 x 1/2" FHWS - 12 x 1-1/4" |
| Manufacturer: | PBB Inc. |
Certifications
| ANSI: | A8112 |
