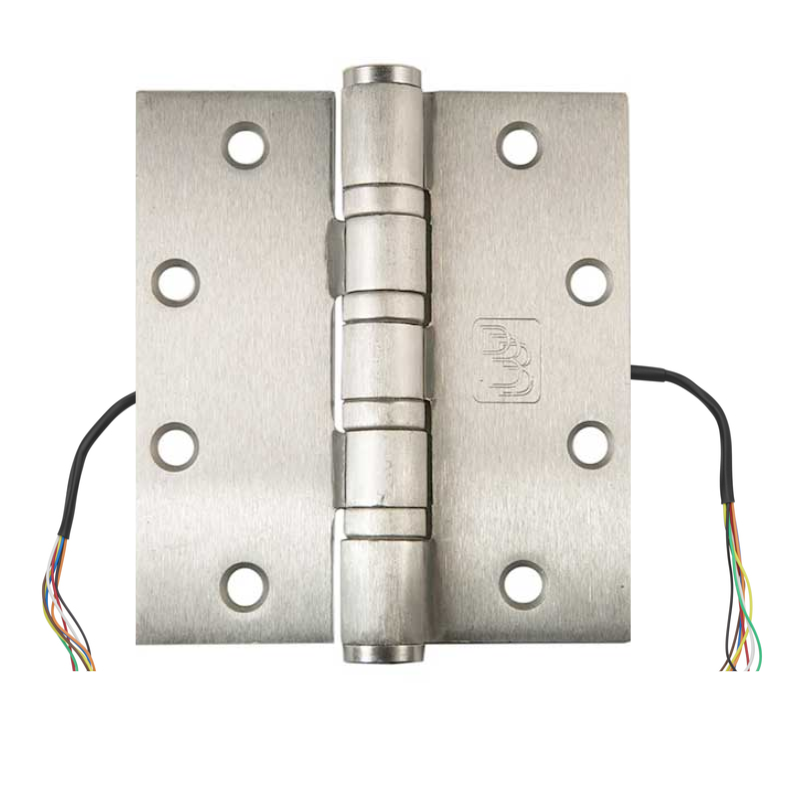

PBB EL4-4B51 5" x 5" US32D Electrified Heavy Weight Hinge, Ball Bearing, 4 Wire, Stainless Steel

  • SKU: EL44B5155US32D
PBB EL4-4B51 5" x 5" US32D Electrified Heavy Weight Hinge, Ball Bearing, 4 Wire, Stainless Steel
Zoomed view
All PBB Products

PBB EL4-4B51 5" x 5" US32D Electrified Heavy Weight Hinge, Ball Bearing, 4 Wire, Stainless Steel

  • SKU: EL44B5155US32D
  • ✓
    Available (4 Weeks)
    4 Weeks Lead Time
Your Price
0% Net 30 Days: Apply Now

PBB EL4-4B51 5" x 5" US32D Electrified Heavy Weight Hinge, Ball Bearing, 5 Inch x 5 Inch , 4 Wire, 630 Stainless Steel

The PBB EL4-4B51 is a US32D Heavy Weight Hinge made of 630 Stainless Steel with a size of 5 inches by 5 inches. It features a durable ball bearing and 4 wires for electrification. As an expert in the industry, I can attest to the quality and reliability of this product for any heavy duty application.

  • Recommended for over 3’4” width doors and having a thickness of 2” or more.
  • For heavy weight doors receiving high frequency service.
  • Ball bearing hinges must be used on doors in conjunction with door closers and on all fire rated openings.
  • For hospital type, add HT to suffix of part number.
  • All hinges are ANSI template.
  • EL4 Wire - Concealed electric through-wire. 4 PTFE coated 28 gauge
Manufacturer PBB
SKU EL44B5155US32D
Installation Commercial
Product Type Heavy Weight Electric Hinges
MATERIAL GAUGE: .190 ± .005 for 4-1/2” x 5”
HEIGHT: 5.00 (+.000/-.015) for 5-1/2”
WIDTH: 5.00 ± .015 for 5” x 5”
4.5” WIDE THROW STANDARD SCREW SIZE FHMS – 12-24 x 1/2”
FHWS – 12 x 1-1/4”
Product Cut Sheet
