Technical Specs
| MATERIAL GAUGE: | .180 ± .005 for 4-1/2” x 5”, 6”, 7”, 8” |
| HEIGHT: | 4.50 (+.000/-.015) for 4-1/2” |
| WIDTH: | 6.00 ± .015 for 4-1/2” x 6” |
| 4.5” WIDE THROW STANDARD SCREW SIZE | FHMS – 12-24 x 1/2” FHWS – 12 x 1-1/4” |
Product Specs
| Manufacturer | PBB |
| SKU | EL4-WT4B81 |
| Installation | Commercial |
| Product Type | Heavy Weight Electric Hinges |

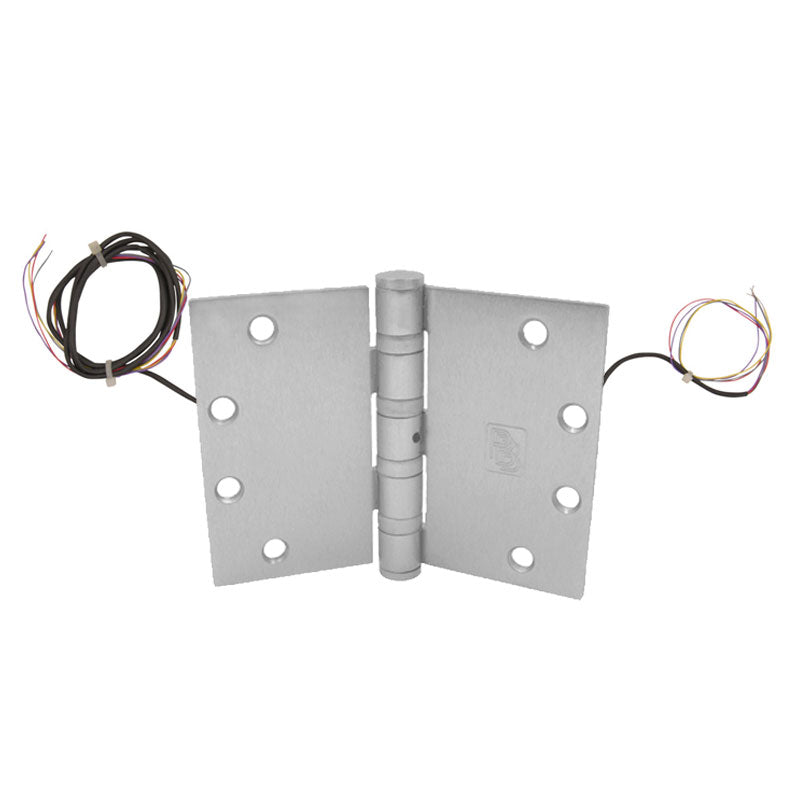

PBB EL4-WT4B81-4 1/2" x 6" NRP-US26D Wide Throw Steel Full Mortise Heavy Weight Hinge, 4 1/2" High, x 6" " NRP" 5 Knuckle, Ball bearing, 4 Wire Electrified Hinge, Non Removable Pin, Satin Chrome Finish
The PBB EL4-WT4B81-4 is a 1/2" x 6" NRP-US26D electrically charged heavy weight hinge, designed for use in wide throw applications. This full mortise hinge is made of durable steel and features a 4 1/2" high design with 5 knuckles and a ball bearing mechanism. The 4 wire electrified hinge has a non-removable pin and is finished in a sleek satin chrome.
- For use on heavy-weight doors requiring high-frequency service.
- For use where doors must clear molding or protrusion, positioning the door out further, when open.
- For hospital type, add HT to the suffix of the part number.
- All hinges are ANSI templates.
- EL4 Wire - Concealed electric through-wire. 4 PTFE coated 28 gauge
- The screw pack includes all machine screws (24), and 1/2 wood screws (12).
