All PBB Products
Certifications
|
ANSI: |
A5133 |
Specifications
|
General Product Information: |
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
|
Material: |
Stainless Steel-Polished and Satin Finish |
|
Material Gauge: |
.123 ± .005 |
|
Size: |
Height: 3.50 (+.000/-.015) Width: 3.50 (+.000/-.015) |
|
Standard Screw Size: |
FHMS - 10-24 x 1/2" FHWS - 10 x 1" |
|
Packing Information: |
One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton 16 unit carton or 48 hinges per master shipping carton 1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMs & AWS also available |
|
Manufacturer: |
PBB Inc. |

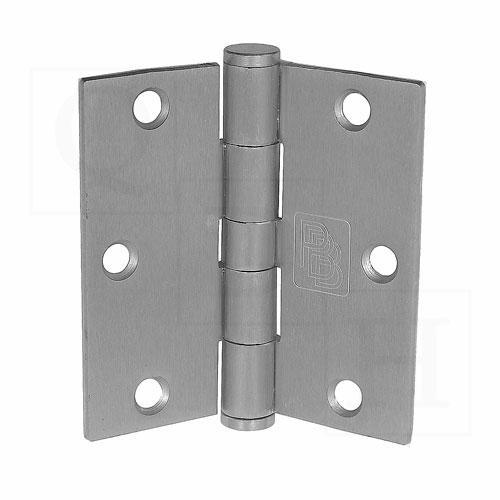

PBB PB51 3-1/2 x 3-1/2 Plain Bearing Hinge Full Mortise Standard Weight 5-Knuckle
PBB PB51 3-1/2 x 3-1/2 Plain Bearing Hinge Full Mortise Standard Weight 5-Knuckle, PB51 Hinges are For use on medium-weight doors or doors requiring low-frequency service. The PB51 Is Available In Bright Or Satin Stainless Steel Finish.
Features:
- Full Mortise
- Stainless Steel
- 3", 3-1/2", 4" available in square, 5/8" and 1/4" Radius Round Corners
- All hinges are ANSI template
