All PBB Products
Certifications
| ANSI: | A8133 |
Specifications
| General Product Information: | PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
| Material: | Steel-Polished and Plated or Bonderized and Prime Coated for Painting |
| Material Gauge: | .123 ± .005 |
| Size: | Height: 3.50 (+.000/-.015) Width: 3.50 (+.000/-.015) |
| Standard Screw Size: | FHMS - 10-24 x 1/2" FHWS - 10 x 1" |
| Packing Information: | One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton 16 unit carton or 48 hinges per master shipping carton 1 screw pack includes (18) machine screws and (18) wood screws ATMs & AWS also available |
| Manufacturer: | PBB Inc. |

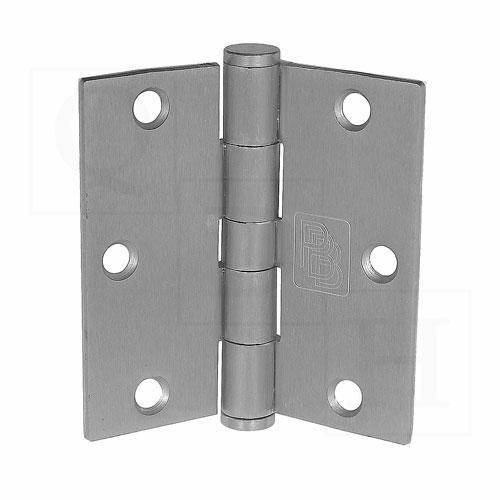

PBB PB81 3-1/2 x 3-1/2 Plain Bearing Hinge Full Mortise Standard Weight 5-Knuckle
PBB PB81 3-1/2 x 3-1/2 Plain Bearing Hinge Full Mortise Standard Weight 5-Knuckle, For use on medium-weight doors or doors requiring low-frequency service, Ideal Interior Wood Doors.
Features:
- Full Mortise
- Wrought Steel
- 3", 3-1/2", 4" available in square, 5/8" and 1/4" Radius Round Corners
- All hinges are ANSI template
