Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Knuckles | 5 |
| Bearing Type | Ball Bearing |
| Weight | Heavy Weight |
| Application Type | Swing Clear |
| Height | 5" |
Product Specs
| Manufacturer | PBB Architectural |
| SKU | SC4B81 5 |
| Unit of Measure | Each |
| Installation | Commercial |
| Base Material | Wrought Steel |

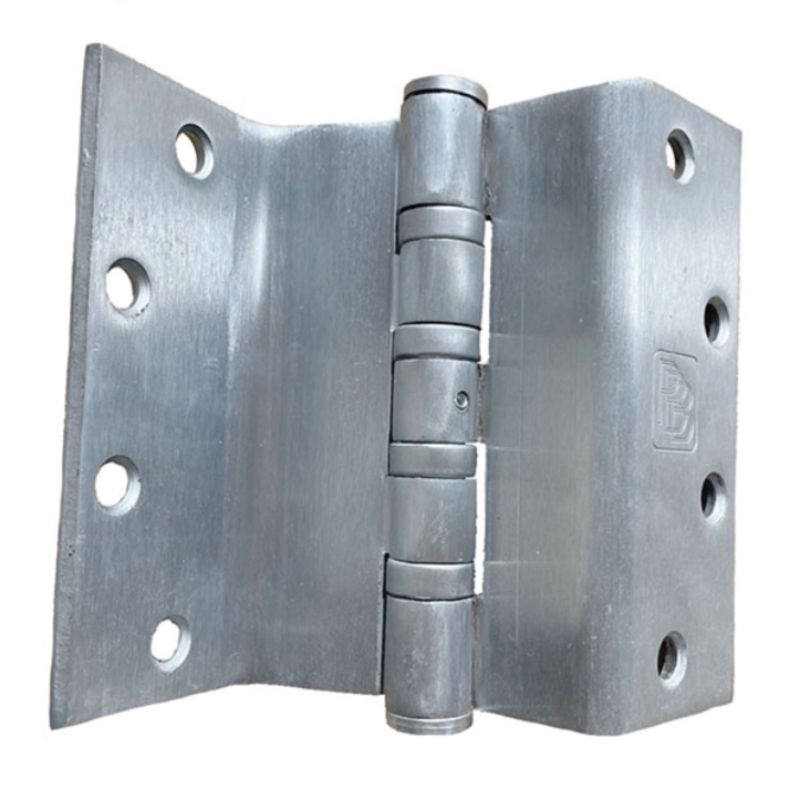

PBB SC4B81 5” Beveled US26D Heavy Weight Full Mortise Ball Bearing Swing Clear Hinge, 5 inch, 626 Satin Chrome Finish
The PBB SC4B81 is a 5 inch heavy weight full mortise ball bearing swing clear hinge, with a beveled design and a sleek satin chrome finish in US26D. This durable hinge is perfect for any door, providing smooth and secure movement.
Features:
- All swing clear hinges are made for reversible applications.
- Designed to swing doors completely clear of the opening when the door is opened 95º. When opened, the 90º door projects 11/64” past the stop of the jamb.
- For heavy-weight doors receiving high-frequency service.
- For hospital type, add HT to the suffix of the part number.
- All hinges are ANSI templates.
