Description

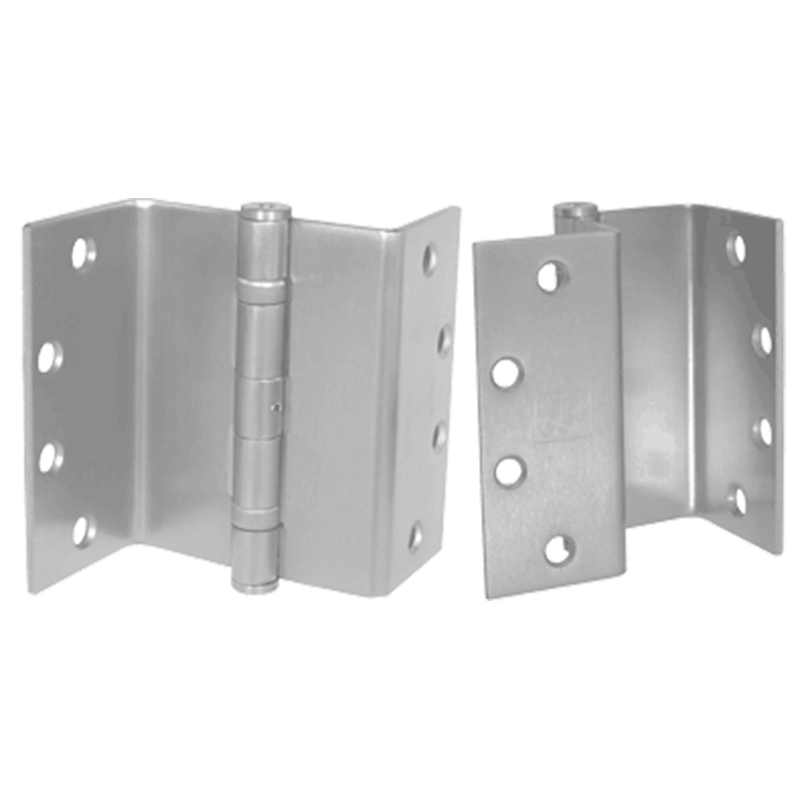

PBB SCBB81-4-1/2-Square Standard Weight Full Mortise Ball Bearing Swing Clear Hinge, 4-1/2 inch
This full mortise ball bearing hinge delivers commercial-grade performance with its 4-1/2 inch square design and swing clear mechanism. Built for standard-weight door applications, the ball bearing construction minimizes friction while supporting smooth, consistent operation in high-use settings. The square profile provides a clean aesthetic alongside the durability professionals demand for institutional and commercial installations.
Features:
- For medium-weight doors receiving average frequency service
- Full Mortise, For Square Door
- Steel
- All hinges are ANSI template
- All swing clear hinges are made for reversible applications
- Designed to swing doors completely clear of the opening when the door is opened 95 º
- When opened 90 º door projects 3/32" last stop of the jamb
- Recommended for 3'0" x 7'0" x 1 3/4" doors not to exceed 150 lbs
Specifications
|
General Product Information: |
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
|
Material: |
Steel-Polished and Plated or Bonderized and Prime Coated for Painting |
|
Clearance: |
Minimum Clearance Required |
|
Material Gauge: |
.134 ± .005 for 4 1/2" |
|
Size: |
4.50 (+.000/-.015) for 4 1/2" |
|
Standard Screw Size: |
FHMS - 12-24 x 1/2" |
|
Packing Information: |
One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton.
|
|
Manufacturer: |
PBB Inc. |
Certifications
|
ANSI: |
A8122 |
