PBB SCPB81 3 1/2" x 3 1/2" US26D Full Mortise Swing Clear Hinge, Plain Bearing, Satin Chrome Finish

  • SKU: SCPB81353526D

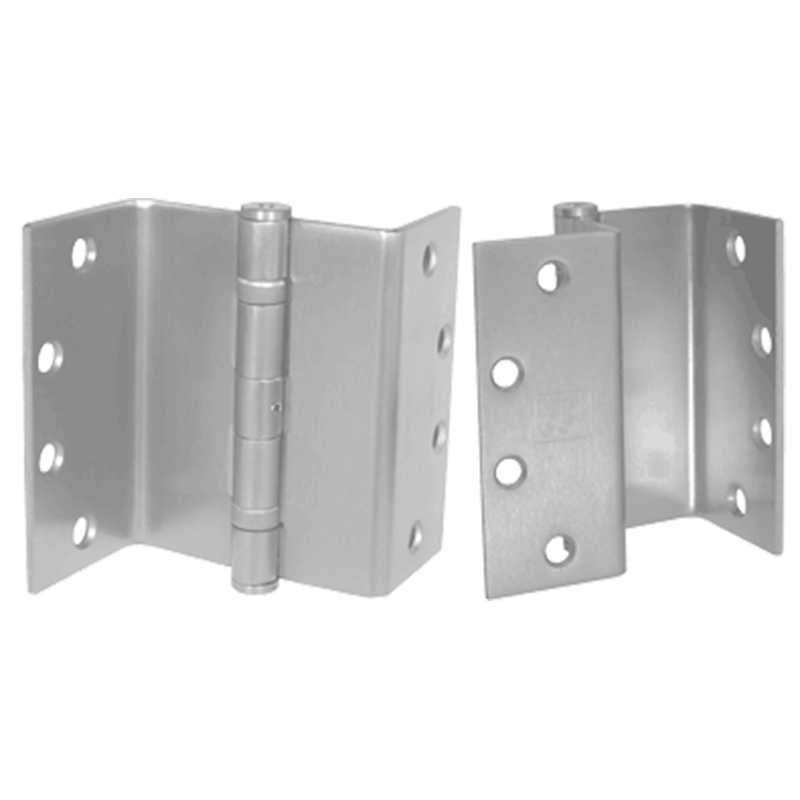

PBB SCBB81 3.5 inch Swing Clear Hinge Full Mortise Ball Bearing
All PBB Products

PBB SCPB81 3 1/2" x 3 1/2" US26D Full Mortise Swing Clear Hinge, Plain Bearing, Satin Chrome Finish

  • SKU: SCPB81353526D
  • ✓
    In Stock
    In Stock
Your Price
$55.00 /ea

Volume Discounts Discount
3 + 10% off
12 + 12% off
24 + 15% off

The PBB SCBB81 3 1/2" x 3 1/2" US26D is a Full Mortise, Plain Bearing Swing Clear Hinge and comes in US26D Satin Chrome finish.

The SCBB81 Is For use in hospitals and institutional or commercial-type buildings for a barrier-free environment. Wherever doors are required to meet barrier-free codes (ADA) or are required to swing completely clear of the openings so that wide equipment can pass through without damaging doors, frames, or equipment, reducing opening maintenance.

Features:

  • For medium-weight doors receiving average frequency service
  • Full Mortise
  • Steel
  • All hinges are ANSI template
  • All swing clear hinges are made for reversible applications
  • Designed to swing doors completely clear of the opening when the door is opened 95 º
  • When opened 90 º door projects 3/32" last stop of the jamb
  • Recommended for 3'0" x 7'0" x 1 3/4" doors not to exceed 150 lbs

General Product Information:

PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)

Material:

Steel-Polished and Plated or Bonderized and Prime Coated for Painting

Clearance:

Minimum Clearance Required
Dimension (inches) 2-1/8"

Material Gauge:

.123 ± .005 for 3 1/2"

Size:

3.50 (+.000/-.015) for 3 1/2"

Standard Screw Size:

FHMS - 10-24 x 1/2"
FHWS - 10 x 1 1/4"

Manufacturer:

PBB Inc.

ANSI:

A8122
