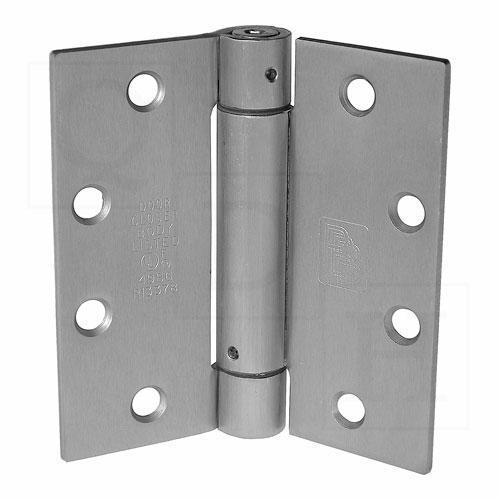

Specifications
General Product Information: | PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
Material: | Stainless Steel and Dull Stainless Steel Finish |
Material Gauge: | .134 ± .005 |
Maximum Door Size: |
For labeled doors 3' x 7' the maximum door size is based on the limits set forth by NFPA Standard #80. Labeled doors require Ball Bearing hinges For non-labeled doors 4'0" wide 4" x 4" Spring hinges are not recommended. For non-labeled doors over 7'6" in height, use an additional hinge for each additional 30" of height or fraction thereof |
Door Thickness | FOR USE ON 1 3/4” DOOR |
Size: |
Height: 4.50 (+.000/-.015) Width: 4. (+.000/-.015) |
Standard Screw Size: |
FHMS - 12-24 x 1/2" FHWS - 12 x 1-1/4" |
Packing Information: | 1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMs & AWS also available |
Manufacturer: | PBB Inc. |
Certifications
ANSI: | K5107 |
UL: | cULus Listed |
