All PEMKO Products
Certifications:
|
BHMA: |
BHMA Certified |
|
UL: |
Underwriters Laboratory 4L10 |
|
Other Certifications: |
Barrier-Free |
Specifications
|
Available Finishes: |
A - Mill Finish Aluminum Aluminum |
|
Width: |
3" |
|
Height: |
1/4" (6.4 mm) |
|
Manufacturer: |
Pemko |

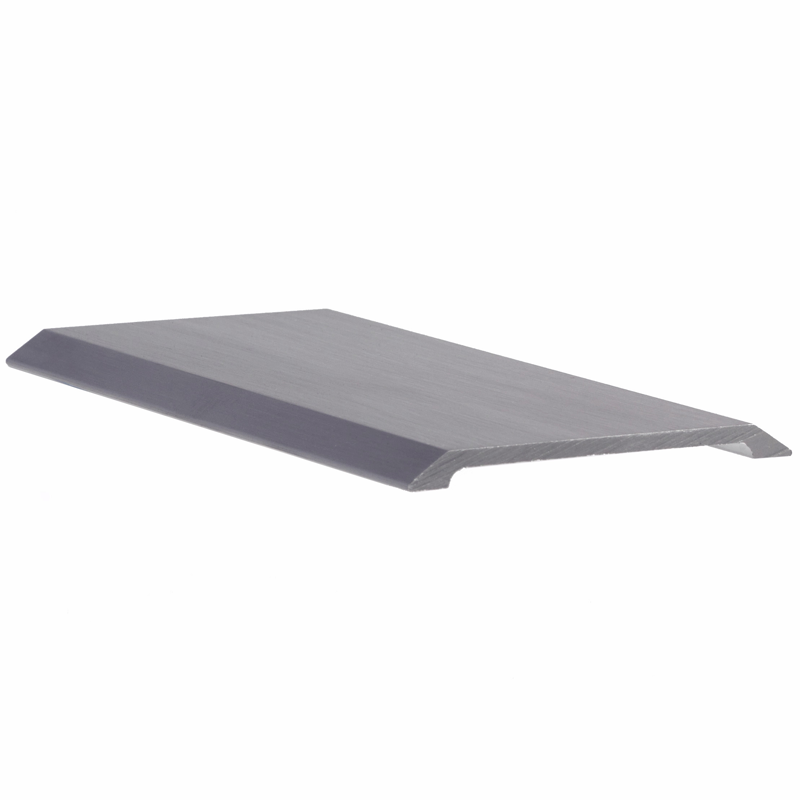

Pemko 151A Saddle Thresholds are 3 Inch Width, and 1/4" Inch Height, and are available in 36", 48", 72" and 96" lengths in Mill Finish Aluminum Finish Fire Rated - UL10C - Positive Pressure
WARRANTY:
- 5 years from the purchase date
CROSS-REFERENCE:
- Draft seal: DS3000; Hager 418; NGP: 411; Reese: S263; Zero/Allegion: 63
PRODUCT TESTING:
- Barrier-Free (ADA) – Meets the requirements of ADAAG-2010 (Amended) and ANSI A117.1-2009 for:
- Overall height is no greater than ½”
- A vertical rise no more than ¼” and/or change in elevation is beveled with a slope of 1:2
- Does not require more than 5lbs of operating force
- Non-Skid/Pemkote – Meets the requirements of ASTM D 2047, UL 410, and Federal Specifications PF-430C for high static coefficient of friction resulting in a slip resistance surface
- Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
- BHMA Certified – Tested for performance with regard to the requirements in
- ANSI/BHMA A156.21 – Thresholds
