Technical Specs
| BHMA: |
BHMA Certified |
| UL: |
Underwriters Laboratory 4L10
Fire Rated - UL10C - Positive Pressure |
| Other Certifications: |
Barrier-Free |
Product Specs

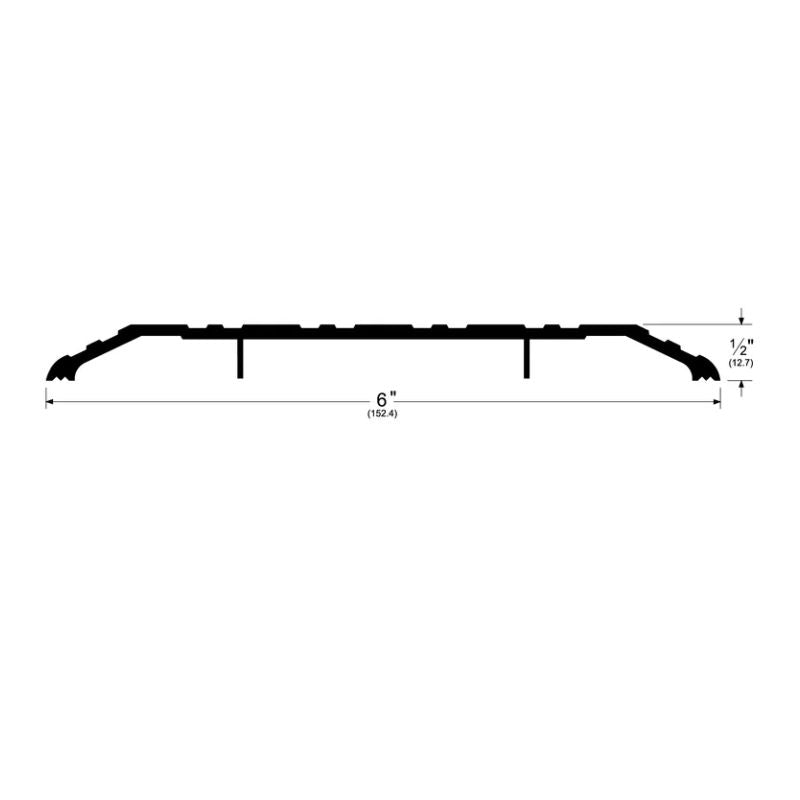

| Width: |
6” (127 mm) |
| Height: |
1/2” (12.7 mm) |
| Manufacturer: |
Pemko |

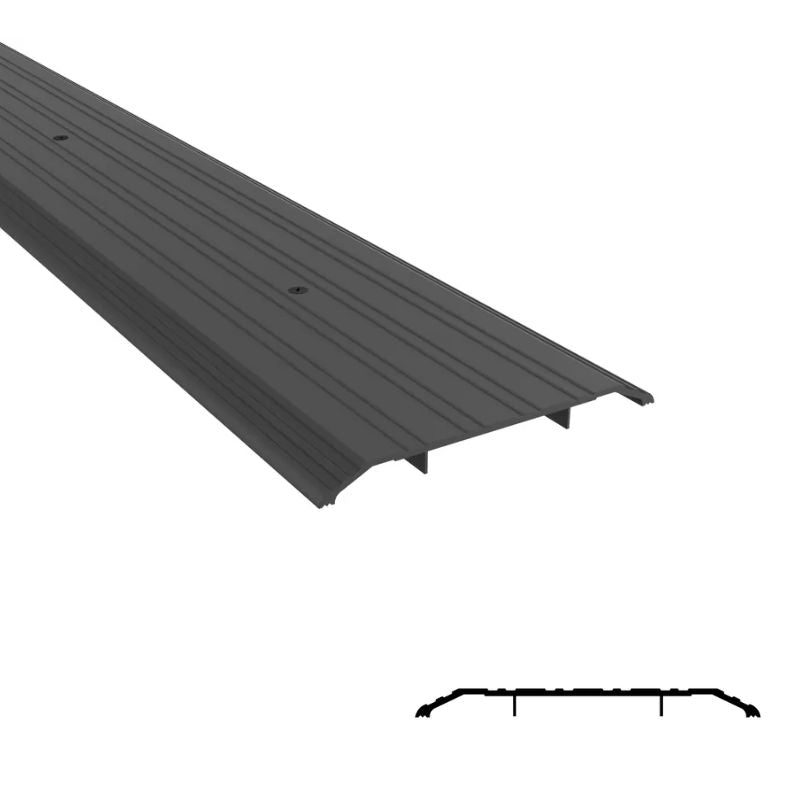

Pemko 172BSP Saddle Threshold - 6" Width, 1/2" Height, 36", 48", 72", and 96" Lengths, Black Suede Powder Coat Finish
The Pemko 172A Door Saddle Threshold comes in a variety of widths and lengths, including 6", 36", 48", 72", and 96", and features a sleek black suede powder coat finish. Its 1/2" height provides a smooth transition between floors, making it a practical choice for any doorway.
- Overall height is no greater than ½”
- A vertical rise no more than ¼” and/or change in elevation being beveled with a slope of 1:2
- Does not require more than 5lbs of operating force
- Non-Skid/Pemkote – Meets the requirements of ASTM D 2047, UL 410, and Federal Specifications P-F430C for high static coefficient of friction resulting in a slip resistance surface
