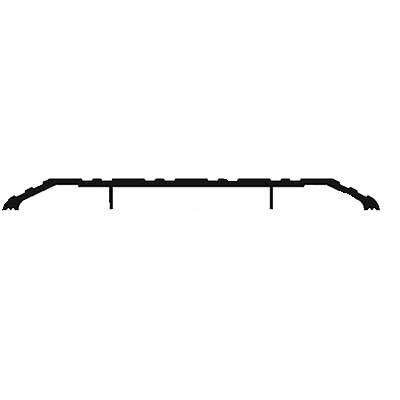

Pemko 172D Door Saddle Threshold - 6" Width, 1/2" Height, Dark Bronze Anodized Aluminum

The Pemko 172D Door Saddle Thresholds have a 6" Width, 1/2" Height, in a Dark Bronze Anodized Aluminum. Pemko 172D Door Saddle thresholds Are ADA Compliant and come in 36", 48", 72", and 96" lengths.



 Installations -

1. Measure the width of the door opening from jamb to jamb and stop to stop and mark ends of the threshold for trimming. 2. Trim ends of threshold to fit around door jambs and stops. 3. Drill pilot holes in the floor through pre-drilled holes in the threshold. 4. Caulk ends of threshold and under the full length of legs (important for effective sealing and moisture control). 5. Secure threshold to the floor with supplied screws. (When fastening to concrete, use anchors; anchors not included.)



Specifications: 172D

Available Finishes:	A - Mill Finish Aluminum Aluminum D - Dark Bronze Anodized Aluminum G - Gold Anodized Aluminum                                                          B  - Mill Bronze Brass
Width:	6” (127 mm)
Height:	1/2” (12.7 mm)
Manufacturer:	Pemko

---

Certifications: 172D

BHMA:	BHMA Certified
UL:	Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure
Other Certifications:	Barrier-Free
