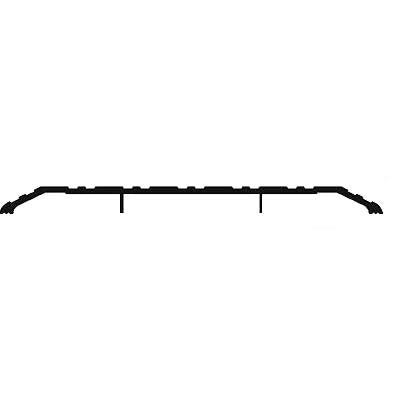

The Pemko 176A Door Saddle thresholds have a 7" width, and a 1/2" height. Pemko 176A Door Saddle Thresholds come in 36", 48", 72", and 96" lengths in Mill Finish Aluminum.

Pemko 176A Door Saddle Threshold Features

• Symmetrical shapes are designed to span a given area, usually under a door.
• Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
• Used in an offset condition

CROSS-REFERENCE: Draftseal: DS700 - Hager 416S - NGP: 427 - Reese: S207, S427 - Zero: 6570 - K N Crowder: CT-12

Installation -                                                                                                                      1. Measure the width of the door opening from jamb to jamb and stop to stop and mark ends of the threshold for trimming.                                                                        2. Trim ends of threshold to fit around door jambs and stops.                                        3. Drill pilot holes in the floor through pre-drilled holes in the threshold.                      4. Caulk ends of threshold and under the full length of legs (important for effective sealing and moisture control).                                                                                          5. Secure threshold to the floor with supplied screws. (When fastening to concrete, use anchors; anchors not included.)
