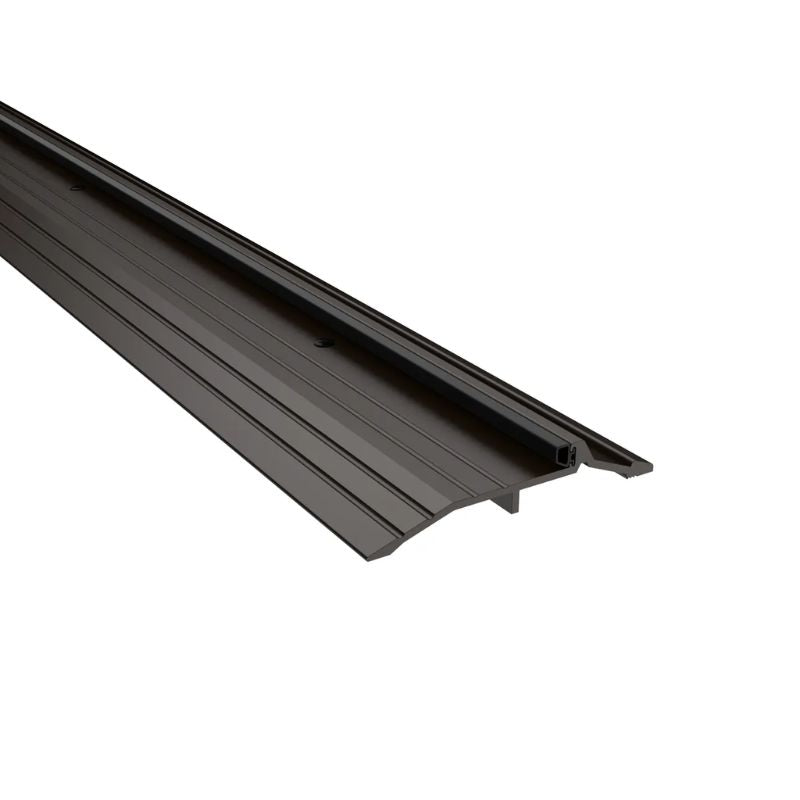

Pemko 177DT Latching Panic Exit Saddle - 5" Width, 7/8" Height, ThermoSeal Insert Dark Bronze Anodized Aluminum Fire Rated

  • SKU: 177DT36

Pemko 177DT Latching Panic Exit Saddle - 5" Width, 7/8" Height, ThermoSeal Insert Dark Bronze Anodized Aluminum Fire Rated

  • SKU: 177DT36
Sale price$144.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Pemko Length: 36" Long

Pemko 177DT Long Latching Panic Exit Saddles Have a 5" Width, with a 7/8" Height. Pemko 177DT comes in 36", 48", 72", and 96" Lengths in a ThermoSeal Insert Dark Bronze Anodized Aluminum Fire Rated

Pemko 177DT Latching Saddle Features

  • Thresholds are designed to work in conjunction with surface applied vertical rod exit devices.
  • Pemko Latching Panic Exit Saddle is also used to provide a doorstop and seal at the bottom of the door
  • PRODUCT TESTING: • GreenGuard GOLD Certification – Tested to UL2818 and achieved GOLD certification for low V.O.C. content – ulspot.com for certificate
  • Air Infiltration Tested – Tested to ASTM E-283-04 (2012) for low air leakage allowance; allows no more than 0.3 cfm per square foot at 1.57 psf.
  • Sound Tested – Tested to ASTM E90 – 2009 in a single or in multiple sound seal configurations for sound attenuation in an opening
  • MATERIAL: Thermoseal (TPE) Gasket, 6063-T6 Aluminum Alloy, and Temper Saddle

Installation-

1. Carefully cope to fit within the frame opening making sure the seal will make contact with the door face.                                                                                              2. Trim seal 1/16” longer than the threshold at each end. Use a sealant or compound at all edges and joints.                                                                                                      3. Fasten with screws provided.

Pemko 177DT Latching Saddle Specifications

Available Finishes:  B - Mill Finish Extruded Bronze (Brass)                                             A - Mill Finish Aluminum Aluminum
 D - Dark Bronze Anodized Aluminum
 G - Gold Anodized Aluminum
Width: 5” (127 mm)
Height: 1/2” (12.7 mm) x 7/8" (22.2 mm)
Manufacturer: Pemko

Certifications

BHMA: BHMA Certified
UL: Underwriters Laboratory 4L10
Fire Rated - UL10C - Positive Pressure
ADA: ADA Compliant
