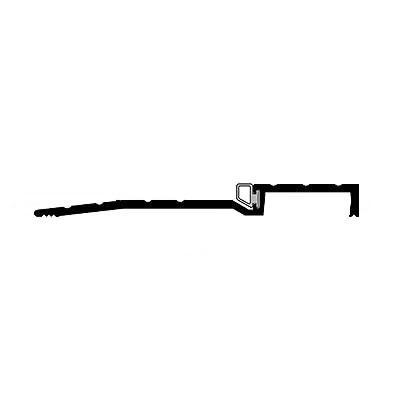

Pemko 2006STC-A Acoustic Latching Panic Saddle has a 5" width, and a 1/2" height. Pemko 2006STC-A Acoustic Latching Panic Saddles come in 36", 48", 72", and 96" lengths with a ThermoSeal Insert in a Mill Finish Aluminum.
Pemko 2006STC-A Features
Latching Panic thresholds are supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
Used to provide a doorstop and seal at the bottom of the door.
Designed to work in conjunction with surface-applied vertical rod devices.
Sound Dampening
Pemko 2006STC-A Specifications
Available Finishes:
A - Mill Finish Aluminum D - Dark Bronze Anodized Aluminum
Insert:
Thermo Seal
Width:
5" (127.0 mm)
Height:
1/2" (12.7 mm)
Manufacturer:
Pemko
Pemko 2006STC-A Certifications
BHMA:
BHMA Certified
UL:
Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure
