Description

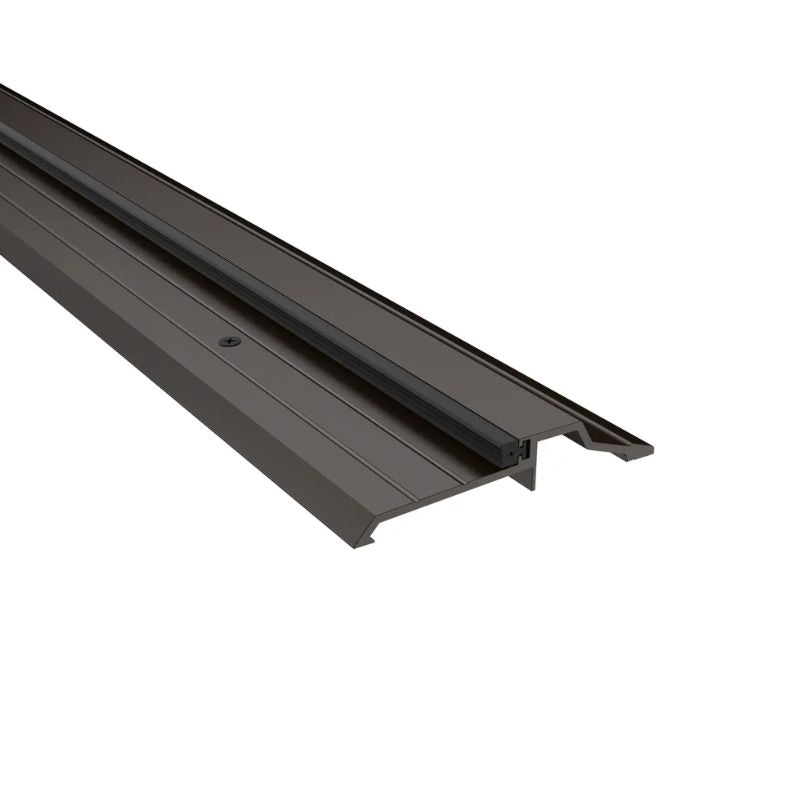

The Pemko 277DR Latching Panic Exit Saddles
The 277DR is 5" wide and a 7/8" high. The Pemko 277DR Latching, Panic Commercial thresholds, are designed to work in conjunction with surface-applied vertical rod exit devices and come with a Sponge Neoprene Insert Mill Finish Aluminum. 277DR Latching Panic thresholds are also used to provide a doorstop and seal at the bottom of the door. Lengths Available are 36", 48", 72", And 96 in Dark Bronze Anodized Aluminum. See all Pemko Panic Exit Saddles.
Features Pemko 277DR Latching Panic Exit Saddle
- Latching Panic thresholds are supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
Specifications
Available Finishes: | A - Mill Finish Aluminum Aluminum D - Dark Bronze Anodized Aluminum |
Insert: | Sponge Neoprene |
Width: | 5" (127.0 mm) |
Height: | 7/8" (22.2 mm) |
Manufacturer: | Pemko |
Certifications
BHMA: | BHMA Certified |
UL: | Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure |
Other Certifications: | Air Infiltration Tested Sound Tested - ASTM E90 |
