Description

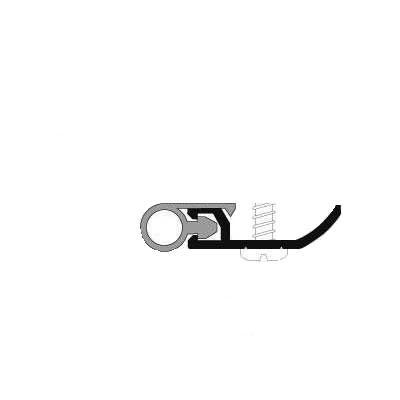

Pemko 297AS-48x84 Perimeter Weather Stripping Gasketing with Black Silicone insert, [1] 48" Width, [2] 84" Length, Mill Finish Aluminum
Pemko 297AS-48x84 Features
- Astragal/Perimeter Gasketing
- Insert: Silicone
- Length: 84"
- Width: 48"
- Material: Mill Finish Aluminum
- ANSI Aluminum: R3E164, R3E165
- Rigid jamb weatherstrip is shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal
- Seal depth provided on each illustration
- Punched on 6" centers with slotted holes for adjustment
- Stainless steel fasteners are provided.
- When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80
- Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes
Pemko 297AS-48x84 Certifications
UL: | Fire Rated - UL10C - Positive Pressure |
BHMA: | BHMA Certified |
Smoke: | Smoke Tested - UL1784 |
