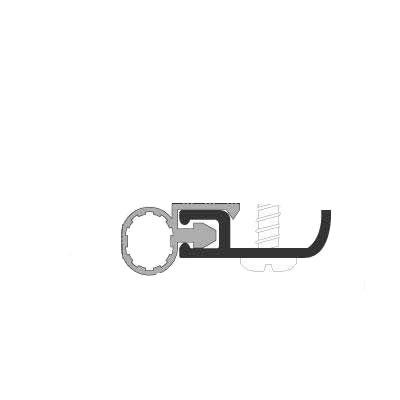

Pemko 316DS96 - Standard Perimeter Gasketing with Black Silicone insert 96" Length, Dark Bronze Aluminum

• Astragal/Perimeter Gasketing
• Insert: Silicone
• Length: 96"
• Material: Dark Bronze Anodized Aluminum
• For replacement insert use: S3 (BL, GR, W)
• ANSI Aluminum: R3E164, R3E165
• Rigid jamb weatherstrip is shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal
• Seal depth provided on each illustration
• Punched on 6" centers with slotted holes for adjustment
• Stainless steel fasteners are provided.
• When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80.
• Category J gaskets for use with listed steel frames and/or classified steel-covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
• This perimeter gasketing is supplied with a Silicone ("S") insert - item number S3BL.
• Fire Rated
• Smoke Rated
• Air Seal Rated
• BHMA Certified
• GreenGuard Certified
