Pemko 411ARL Automatic Door Bottom Full Mortise Sponge Neoprene Insert Mill Finish Aluminum

  • SKU: 411ARL18

Pemko 411ARL Automatic Door Bottom Full Mortise Sponge Neoprene Insert Mill Finish Aluminum

  • SKU: 411ARL18
Sale price$129.00/ea
In Stock
In Stock
Pemko Length: 18" Long

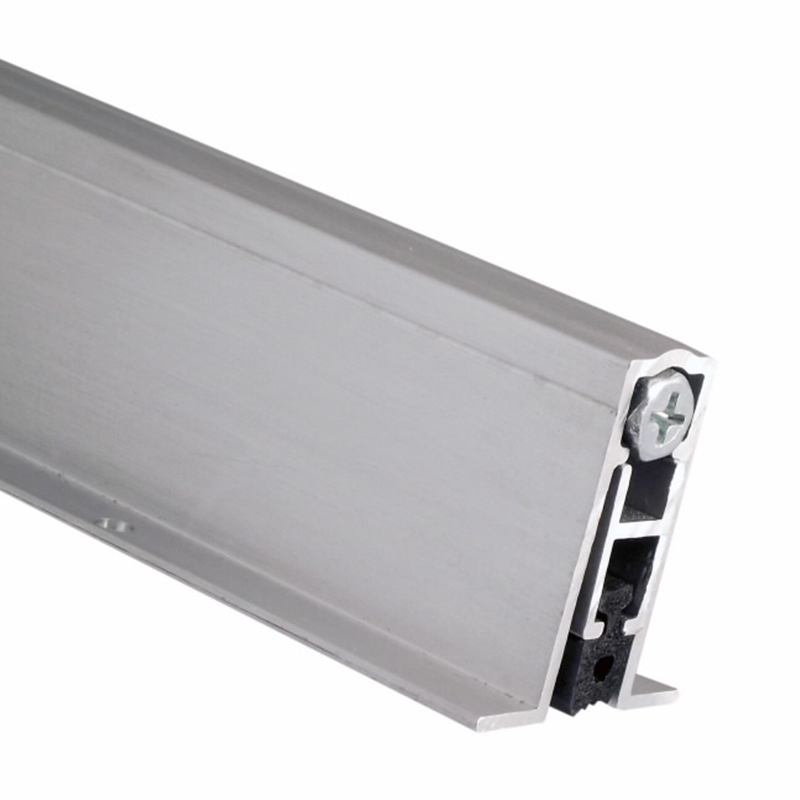

Pemko 411ARL Automatic Door Bottom

The Pemko 411ARL Automatic Door Bottom is a full-mortise sponge neoprene insert. It has a milled aluminum finish.

The Pemko automatic door bottom consists of an aluminum case that surrounds a movable drop-bar seal. The drop-bar seal is actuated by a plunger that contacts the jamb as the door is closing, forcing the drop-bar to seal down against the floor or threshold.


**Quick Shipping for 32 Inch & 36 Inch only**

Features:

  • Smoother action positive seal mechanism
  • Most models are now available with nylon brush (NB) seals. The nylon filaments conform extremely well to irregular surfaces such as carpet, stone, and grout lines
  • Especially over uneven surfaces, both PemkoPrene and nylon brush (NB) provide excellent seals to keep out draft, dust, moisture, insects, fumes, light, and sound
  • The line includes models which can be mounted to either wood or hollow metal doors
  • End plates are provided for all mounting applications
  • Leadline available upon request; consult Customer Service for options on profiles
  • All Pemko automatic door bottoms are provided NET length

Available Finishes:

Mill Finish Aluminum Aluminum with Black PemkoPrene insert

Available Sizes:

Available in any size ranging from 18" to 72"

Width:

9/16" (14.3 mm)

Height:

1-3/8" (34.9 mm)

Insert Type:

Sponge Neoprene

Manufacturer:

Pemko


BHMA:

BHMA Certified

UL:

Underwriters Laboratory 4L10

Fire Rated - UL10C - Positive Pressure

Other Certifications:

Air Infiltration Tested

Sound Tested - ASTM E90

Smoke Tested - UL1784
