Pemko 412CRL Automatic Door Bottom Surface Mounted - 9/16" Width, 1 15/16" Height, Sponge Neoprene Insert Clear Anodized Aluminum

SKU: 412CRL36

Products Pemko 412CRL Automatic Door Bottom Surface Mounted

All PEMKO Products

Pemko 412CRL Automatic Door Bottom Surface Mounted - 9/16" Width, 1 15/16" Height, Sponge Neoprene Insert Clear Anodized Aluminum

SKU: 412CRL36

$152.00/ea

In Stock

In Stock

Choose your options

Pemko Length

Quantity:

Certifications

BHMA:

BHMA Certified

UL:

Underwriters Laboratory 4L10

Fire Rated - UL10C - Positive Pressure

Other Certifications:

Air Infiltration Tested

Sound Tested - ASTM E90

Smoke Tested - UL1784

Specifications

Available Finishes:	C - Clear Anodized Aluminum D - Dark Bronze Anodized Aluminum G - Gold Anodized Aluminum
Insert Type:	Sponge Neoprene
Width:	9/16" (14.3 mm)
Height:	1 15/16" (49.2 mm)
Manufacturer:	Pemko

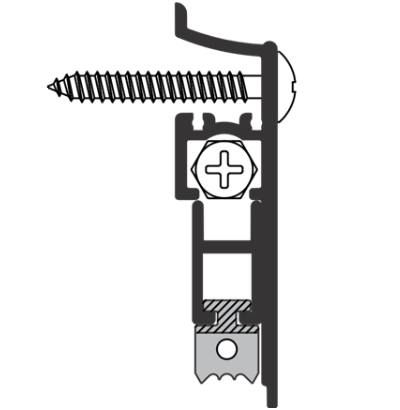

Pemko 412CRL Automatic Door Bottom Surface Mounted - 9/16" Width, 1 15/16" Height, Sponge Neoprene Insert Clear Anodized Aluminum. The Pemko 412CRL Is a Surface Mounted Automatic Door Bottom With a 9/16" Width And a 1 15/16" Height Sponge Neoprene Insert In a Clear Anodized Aluminum Finish. Pemko 412-CRL Automatic door bottoms consist of an aluminum case which The 412CRL Has a movable drop-bar seal. The Pemko 412 drop bar seal is actuated by a plunger that contacts the jamb as the door is closing, forcing the drop bar to seal down against the floor or threshold

Features:

When the plunger contacts the jamb, the drop bar seal actuates from the hinge side first allowing multiple compression points
The plunger requires a low undefinedFeatherTouchundefined closing force to actuate the drop bar seal. The "L" at the end of all product numbers stands for Low closing force
End plates are provided for all mounting applications
All Pemko - automatic door bottoms are provided with net length
Stock length - Automatic door bottoms can be trimmed as much as 2"
