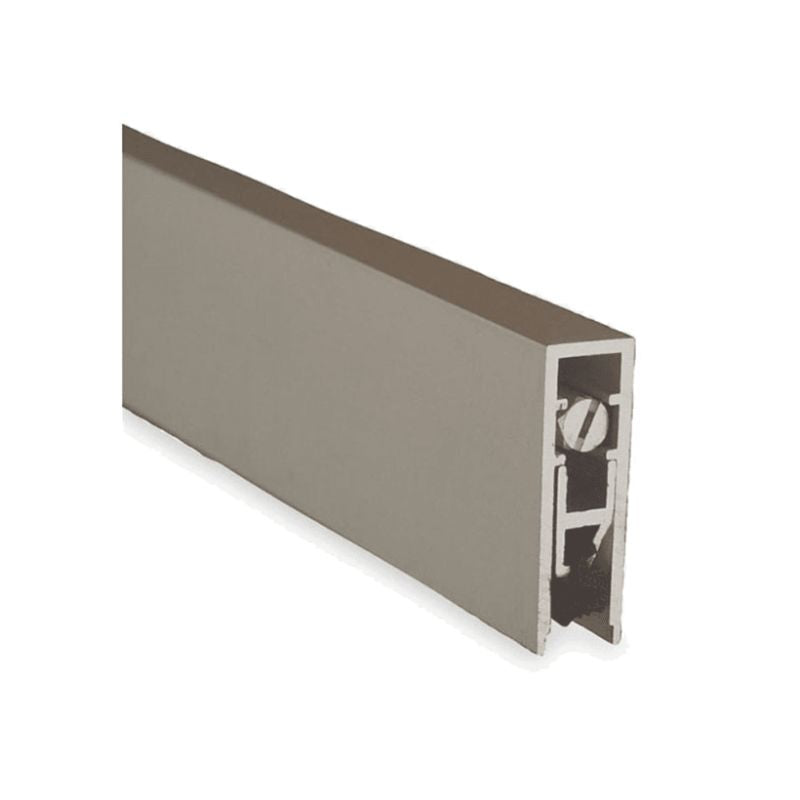

Pemko 4131CRL Automatic Door Bottom, Surface Mounted, Clear Anodized Aluminum

Technical Specs

Peoduct Specs

Pemko 4131CRL Automatic Door Bottom, Surface Mounted, Semi Mortise, 9/16" Width, 1-7/8" Height, Sponge Neoprene Insert, Clear Anodized Aluminum

Pemko 4131CRL Automatic Door Bottom is a surface mounted product made of clear anodized aluminum. It features a semi mortise design, with a width of 9/16" and a height of 1-7/8". The insert is made of sponge neoprene, providing an effective seal for the bottom of doors.

Features:

• All Pemko Automatic Door Bottoms, 24" and up, can be manufactured for field alteration. Please specify when ordering: Allow 2" for field trimming
• Overall sizes range from 12" to 72". Sizes between 12" and 23.9" will be supplied at absolute NET length and will have no room for field trimming.

• 0.0625" Lead-lining available upon request; contact Pemko Customer Service for options on profiles

• Provided with end plate kits (except 420, SA, and 405V models) which include wood screws. Tek screws are available for mounting to hollow metal doors.
• See Planet Automatic Door Bottoms for additional models made by ASSA ABLOY Schweisse and offered in the U.S.A. by Pemko.
