Description

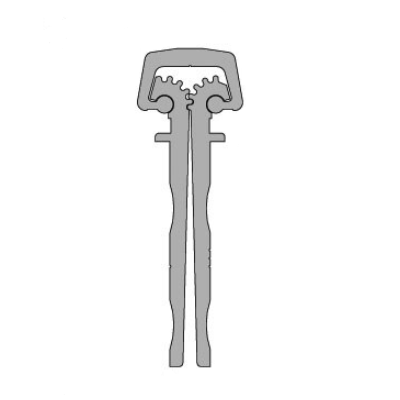

Pemko CFM83SLFHD1HT Full-Mortise Heavy Duty Short Leaf Flush Hospital Tip Continuous Geared Hinge in Clear Anodized Finish - 83" Fire Rated
Pemko CFM83SLFHD1HT is a Continuous Geared Hinge Full-Mortise Heavy Duty Short Leaf Flush, with a Hospital tip in Clear Anodized Finish Fire Rated - UL10C - Positive Pressure. Pemko CFM Hinges Are Designed for use with doors that range between 1-3/4" to 2-1/4", for bifold applications to keep the faces of the doors flush.
Features
- Designed for use with doors that range between 1-3/4" to 2-1/4"
- Designed for bifold applications to keep the faces of the doors flush
Specifications
| Finish: | C - Clear Anodized |
| Length: | 83" |
| Width: | 25/32" (19.8 mm) |
| Height: | 2-3/8" (60.4 mm) |
| Manufacturer: | Pemko |
Certifications
| BHMA: | BHMA Certified |
| UL: | Fire Rated - UL10C - Positive Pressure |
| Other Certifications: | PemkoHinge Fire Rating - UL76Y2 |
