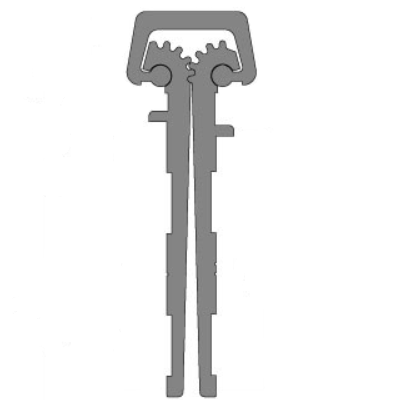

The Pemko CFM83SLI Continuous Geared Hinge Full-Mortise Short Leaf Inset Clear Anodized Finish - 83" Fire Rated - UL10C - Positive Pressure, Pemko CFM83SLI Is Designed for use with doors that range between 1-3/4" to 2-1/4" CFM Hinges Are Designed for use with hollow metal frames where the inset conforms to S.D.I. specifications for aligning doors and frames, Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming, no tapping required
Specifications
| Finish: | C - Clear Anodized |
| Length: | 83" |
| Width: | 25/32" (19.8 mm) |
| Height: | 2-3/8" (60.4 mm) |
| Manufacturer: | Pemko |
Certifications
| BHMA: | BHMA Certified |
| UL: | Fire Rated - UL10C - Positive Pressure |
| Other Certifications: | PemkoHinge Fire Rating - UL76Y2 |
