Certifications
|
BHMA:
|
BHMA Certified
|
|
UL:
|
Fire Rated - UL10C - Positive Pressure
|
|
Other Certifications:
|
PemkoHinge Fire Rating - UL76Y2
|
Specifications
|
Finish:
|
C - Clear Anodized
|
|
Length:
|
85"
|
|
Width:
|
25/32" (19.8 mm)
|
|
Height:
|
2-9/16" (65.1 mm)
|
|
Manufacturer:
|
Pemko
|

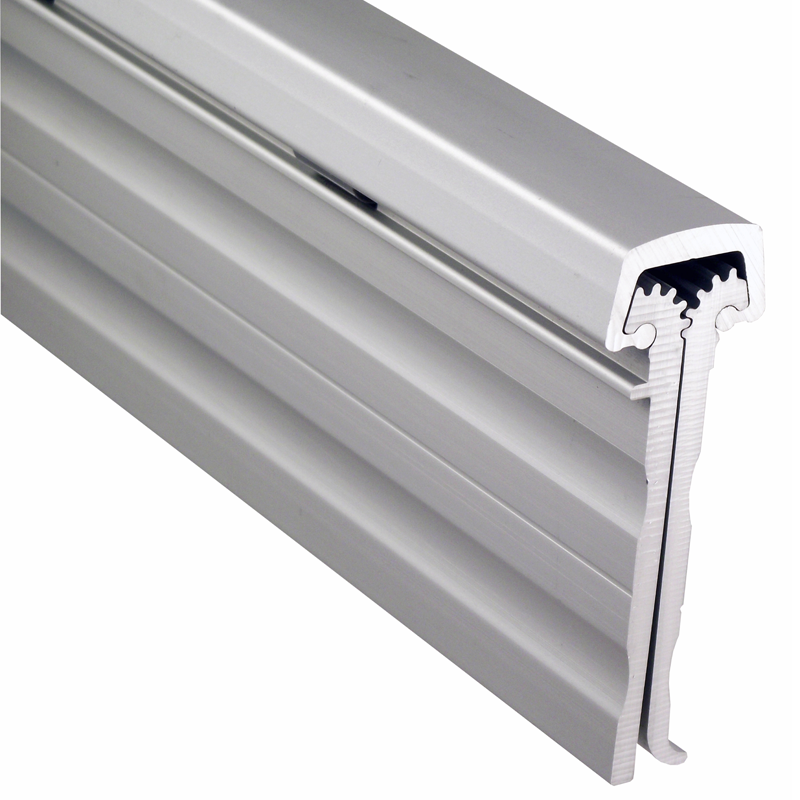

Pemko CFM85 Full-Mortise Continuous Geared Hinge in Clear Anodized Finish - 85"
Pemko CFM85 is a standard duty anodized aluminum Full Mortise unit designed mainly for new door applications. Also available in heavy-duty models
Features:
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
- Applied to conceal both leaves
