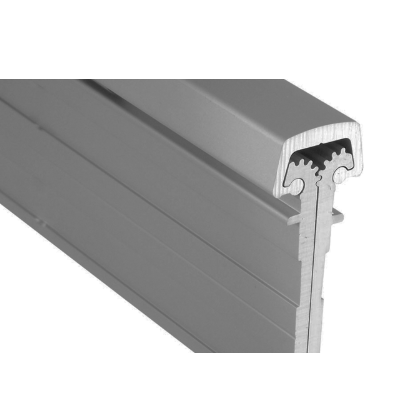

Pemko CFM95SLI Full-Mortise Short Leaf Inset Continuous Geared Hinge in Clear Anodized Finish - 95"
Pemko CFM95SLI is a standard duty anodized aluminum Full Mortise shortleaf inset continuous geared hinges are designed mainly for new door applications. Also available in heavy-duty models
Pemko CFM95SLI Features
- Designed for use with doors that range between 1-3/4" to 2-1/4"
- Designed for use with hollow metal frames where the inset conforms to S.D.I. specifications for aligning doors and frames
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
Pemko CFM95SLI Specifications
| Finish: |
C - Clear Anodized |
| Length: |
95" |
| Width: |
25/32" (19.8 mm) |
| Height: |
2-3/8" (60.4 mm) |
| Manufacturer: |
Pemko |
Pemko CFM95SLI Certifications
| BHMA: |
BHMA Certified |
| UL: |
Fire Rated - UL10C - Positive Pressure |
| Other Certifications: |
PemkoHinge Fire Rating - UL76Y2 |
