Pemko CFS83CPHD1 Center Pivot Continuous Geared Hinge Full-Surface Heavy Duty Clear Anodized Finish - 83"

  • SKU: CFS83CPHD1

Pemko CFS83CPHD1 Center Pivot Continuous Geared Hinge Full-Surface Heavy Duty Clear Anodized Finish - 83"

  • SKU: CFS83CPHD1
Sale price$413.00/ea
In Stock
In Stock

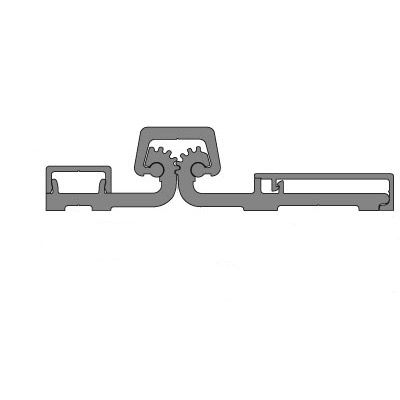

Pemko CFS83CPHD1 Center Pivot Continuous Geared Hinge Full-Surface Heavy Duty Clear Anodized Finish - 83"



The Pemko CFS83CPHD1 Center Pivot Continuous Geared Hinge Full-Surface Heavy Duty Clear Anodized Finish, Pemko's heavy-duty anodized aluminum Full Surface Center Pivot continuous geared hinges are designed mainly for retrofit work and are applied to the exposed surfaces of the door and frame



Features

  • Easily replace butt hinges since no door or frame adjustments are necessary and are more versatile with restricted frame faces
  • Standard model: 12 fasteners required for each leaf
  • Fasteners - Frame Portion - All fasteners are #12-24 x 7/16" Phillips Head, Type C, thread-forming
  • Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also, wood core rated up to and including 20 minutes without hose stream
  • Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80

Specifications CFS83CPHD1 Center Pivot Continuous Geared Hinge Full-Surface

Finish: C - Clear Anodized
Length: 83"
Width: 1-3/16" (30.2 mm) (frame side - leaf)
2" (50.8 mm) (door side - leaf)
3-3/16" (80.9 mm) (total width of hinge)
Cap Width: 25/32" (19.8 mm)
Height: 3/4" (19.1 mm) (total height of hinge)
Manufacturer: Pemko

Certifications

BHMA: BHMA Certified
UL: Fire Rated - UL10C - Positive Pressure
Other Certifications: PemkoHinge Fire Rating - UL76Y2

Continuous Hinge Handing Chart
