Description

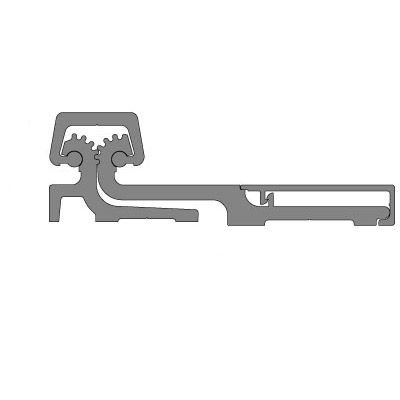

Pemko CFS83HD1 Continuous Geared Hinge Full-Surface Heavy Duty Clear Anodized Finish - 83"
The Pemko CFS83HD1 Continuous Geared Hinge Full-Surface Heavy Duty Clear Anodized Finish, Pemko's CFS83HD1 Continuous Full-Surface heavy-duty anodized aluminum Full Surface continuous geared hinges are designed mainly for retrofit work and are applied to the exposed surfaces of the door and frame
Features
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
- Applied to conceal both leaves
- Standard model: 10 fasteners required for each leaf
- Standard duty hinge. 6" between bearing centers
- Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
- Special hinge reinforcements are not required. Hollow metal door and frame manufacturers standard is acceptable
Specifications
Finish: | C - Clear Anodized |
Length: | 83" |
Width: |
1-1/4" (31.8 mm) (frame side - leaf) 1-3/8" (34.9 mm) (door side - leaf) |
Height: | 29/32" (23.0 mm) (total height of hinge) |
Manufacturer: | Pemko |
Certifications
BHMA: | BHMA Certified |
UL: | Fire Rated - UL10C - Positive Pressure |
Other Certifications: | Pemko Hinge Fire Rating - UL76Y2 |
