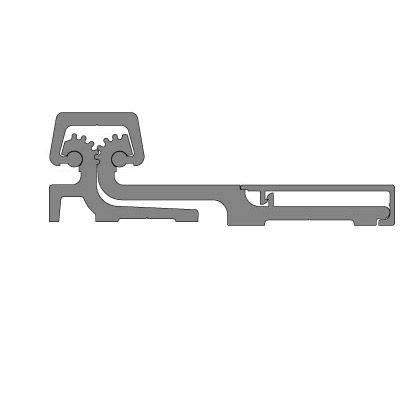

Pemko CFS85HD1 Continuous Geared Hinge Full-Surface Heavy Duty Clear Anodized Finish - 85"
The Pemko CFS85HD1 Continuous Geared Hinge Full-Surface Heavy Duty Clear Anodized Finish, Pemko's heavy-duty
anodized aluminum Full Surface continuous geared hinges are designed mainly for retrofit work and are applied to the exposed surfaces of the door and frame
Features CFS85HD1 Continuous Geared Hinge Full-Surface Heavy Duty Clear Anodized Finish
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
- Applied to conceal both leaves
- Standard model: 10 fasteners required for each leaf
- Standard duty hinge. 6" between bearing centers
- Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
- Special hinge reinforcements are not required. Hollow metal door and frame manufacturers
