Certifications
| BHMA: | BHMA Certified |
| UL: | Fire Rated - UL10C - Positive Pressure |
| Other Certifications: | PemkoHinge Fire Rating - UL76Y2 |
Specifications
| Finish: | C - Clear Anodized |
| Length: | 83" |
| Width: | 5/16" (7.9 mm) (between frame edge and door edge) Cap Width: 25/32" (19.8 mm) |
| Height: | 1-1/4" (31.8 mm) (to flange/frame edge side) 11/16" (17.5 mm) (frame edge side flange to top of cap) |
| Manufacturer: | Pemko |

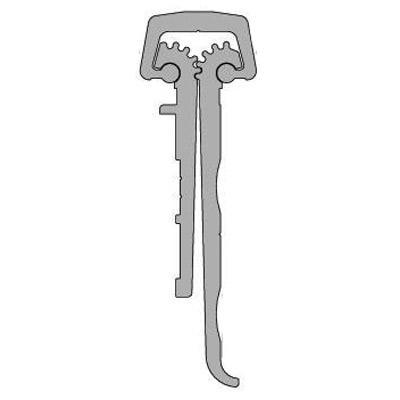

Pemko CSPFM83HD1 Special Heavy Duty Full-Mortise Continuous Geared Hinge in Clear Anodized Finish - 83"
Pemko's heavy-duty anodized aluminum Special Full Mortise continuous geared hinges are designed for door and frame applications where the hinge leaf may interfere with the weatherstrip, thermo-break, or applied stop to the frame
Features:
- Applied to conceal both leaves
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
- Standard model: 16 fasteners are required for each leaf
- Standard duty hinge. 6" between bearing centers
- Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel-covered composite type rated up to 3 hours, wood-covered composite type rated up to and including 1-1/2 hours. Also, the wood core is rated up to and including 20 minutes without a hose stream
- Specific door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
