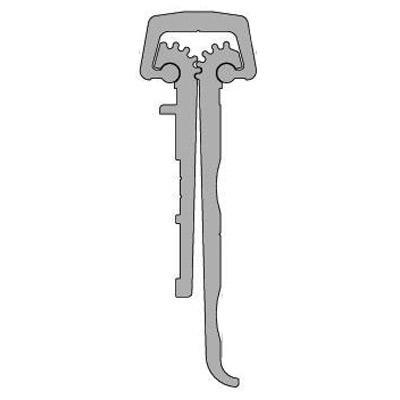

Pemko CSPFM85SLFHD1 Special Heavy Duty Full-Mortise Short Leaf Flush Continuous Geared Hinge in Clear Anodized Finish - 85"
Pemko's heavy-duty anodized aluminum Special Full Mortise - Short Leaf Flush continuous geared hinges are designed for door and frame applications where the hinge leaf may interfere with the weatherstrip, thermo-break, or applied stop to the frame
Features
Applied to conceal both leaves
Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
Standard model: 16 fasteners required for each leaf
Standard duty hinge. 6" between bearing centers
Tested and certified by Underwriters Laboratories Inc. (the USA and Canada) to standard UL10B, UL10C, and UBC 7.2 (positive pressure) for up to a 3-Hour (A-Label) fire listing for all 4 ft. 0 in. x 10 ft. 0 in. and 8 ft. 0 in. x 10 ft. 0 in. door and frame assemblies. Fire listing certifications apply to all approved hollow metal and wood door assemblies in drywall or masonry construction
Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
Specifications
Finish:
C - Clear Anodized
Length:
85"
Width:
5/16" (7.9 mm) (between frame edge and door edge) Cap Width: 25/32" (19.8 mm)
Height:
1-1/4" (31.8 mm) (to flange/frame edge side) 11/16" (17.5 mm) (frame edge side flange to top of cap) 1-11/16" (42.9 mm) (to flange/door edge side)
