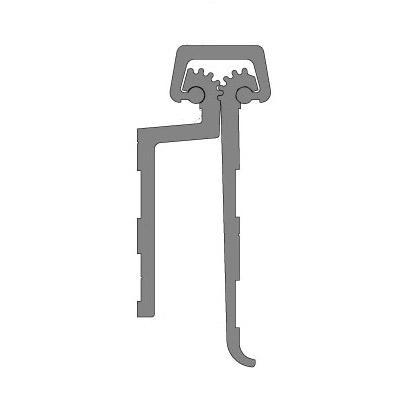

Pemko DFM83SFHD1 Full-Mortise Heavy Duty Safety Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"
Pemko's heavy-duty anodized aluminum Full Mortise Safety continuous geared hinges are designed mainly for new door applications in child care and nursing facilities. These hinges require extra clearance
Features
- Applied to conceal both leaves
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
- Standard model: 16 fasteners required for each leaf
- Standard duty hinge. 6" between bearing centers
- Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
Specifications
Finish: | D - Dark Bronze Anodized |
Length: | 83" |
Width: | 13/16" (20.6 mm) (between frame edge and door edge, square edge door applications) 27/32" (21.4 mm) (between frame edge and door edge, beveled edge door applications) |
Height: | 2-9/16" (65.1 mm) (to top cap/frame edge & door edge sides) 1-1/2" (38.1 mm) (frame edge side - leaf) |
Manufacturer: | Pemko |
Certifications
BHMA: | BHMA Certified |
