Description

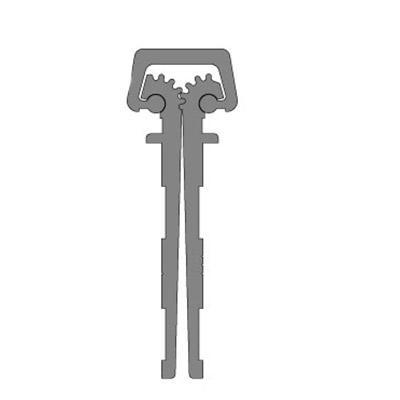

Pemko DFM83SLIHT Full-Mortise Short Leaf Inset Hospital Tip Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"
Pemko DFM83SLIHT is a hospital tip standard duty anodized aluminum Full Mortise shortleaf inset continuous geared hinges designed mainly for new door applications. Also available in heavy-duty models
Features:
- Designed for use with doors that range between 1-3/4" to 2-1/4"
- Designed for use with hollow metal frames where the inset conforms to S.D.I. specifications for aligning doors and frames
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
Specifications
| Finish: | D - Dark Bronze Anodized |
| Length: | 83" |
| Width: | 25/32" (19.8 mm) |
| Height: | 2-3/8" (60.4 mm) |
| Manufacturer: | Pemko |
Certifications
| BHMA: | BHMA Certified |
| UL: | Fire Rated - UL10C - Positive Pressure |
| Other Certifications: | PemkoHinge Fire Rating - UL76Y2 |
