Certifications
BHMA: |
BHMA Certified |
UL: |
Fire Rated - UL10C - Positive Pressure |
Other Certifications: |
PemkoHinge Fire Rating - UL76Y2 |
Specifications
Finish: |
D - Dark Bronze Anodized |
Length: |
95" |
Width: |
25/32" (19.8 mm) |
Height: |
2-9/16" (65.1 mm) |
Manufacturer: |
Pemko |

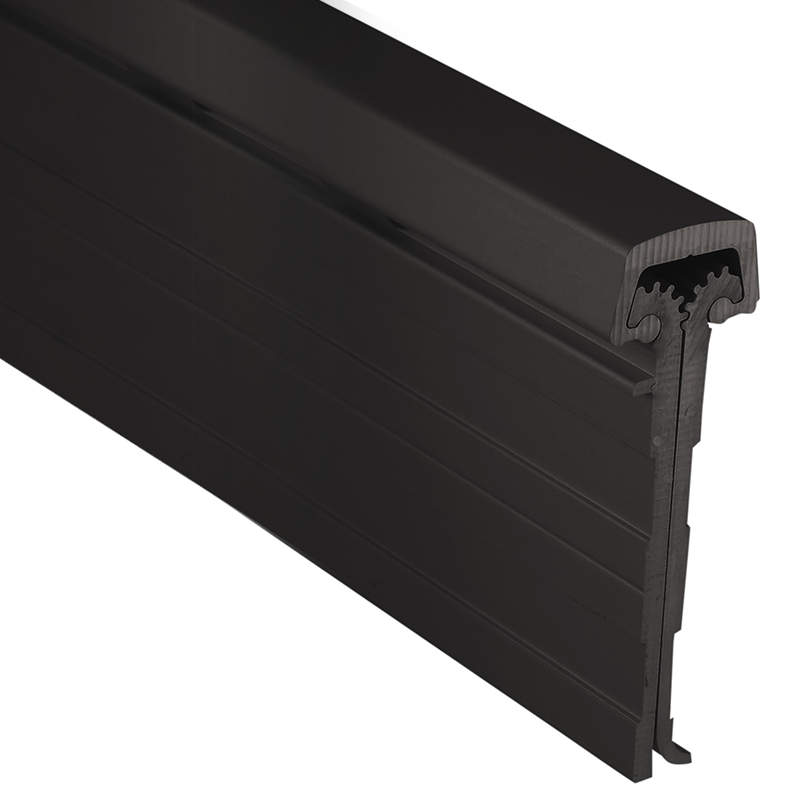

Pemko DFM95HD1 Full-Mortise Heavy Duty Continuous Geared Hinge in Dark Bronze Anodized Finish - 95"
Pemko's heavy-duty anodized aluminum Full Mortise units are designed mainly for new door applications
Features:
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
- Applied to conceal both leaves
