Description

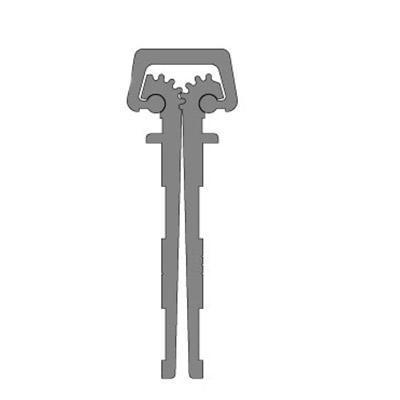

Pemko DFM95SLFHT Full-Mortise Short Leaf Flush Hospital Tip Continuous Geared Hinge in Dark Bronze Anodized Finish - 95"
Pemko DFM95SLFHT is a Hosptial Tip standard duty anodized aluminum Full Mortise - Short Leaf Flush continuous geared hinges designed mainly for new door applications. Also available in heavy-duty models
Features:
- Designed for use with doors that range between 1-3/4" to 2-1/4"
- Designed for bifold applications to keep the faces of the doors flush
Specifications
| Finish: | D - Dark Bronze Anodized |
| Length: | 95" |
| Width: | 25/32" (19.8 mm) |
| Height: | 2-3/8" (60.4 mm) |
| Manufacturer: | Pemko |
Certifications
| BHMA: | BHMA Certified |
| UL: | Fire Rated - UL10C - Positive Pressure |
| Other Certifications: | PemkoHinge Fire Rating - UL76Y2 |
