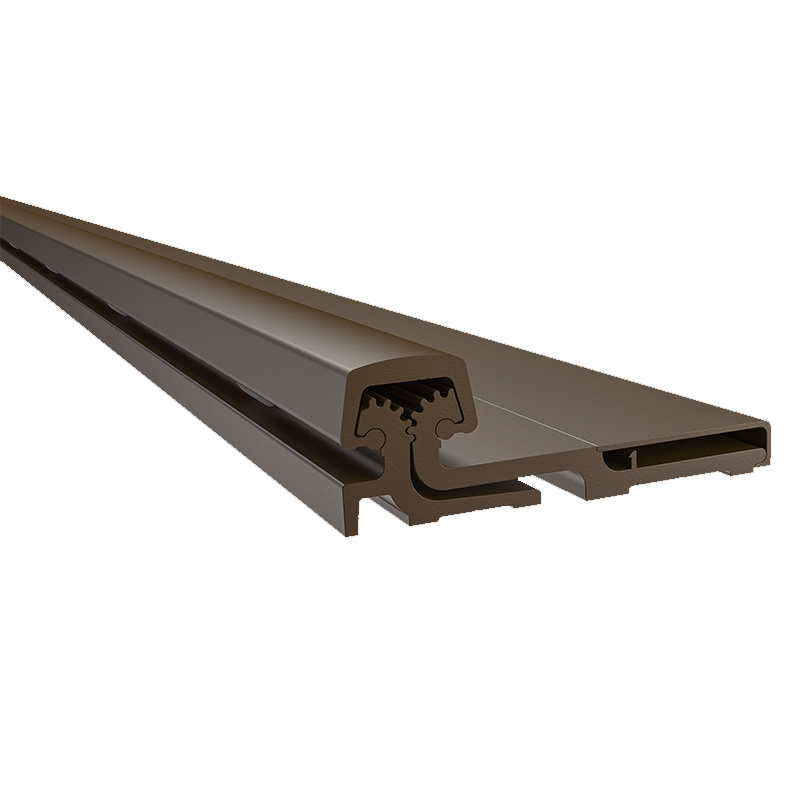

Pemko DFS83 Full-Surface Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"

  • SKU: DFS83

Pemko DFS83 Full-Surface Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"

  • SKU: DFS83
Sale price$405.00/ea
In Stock
In Stock

Pemko DFS83 Full-Surface Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"

Pemko's standard-duty anodized aluminum Full Surface continuous geared hinges are designed mainly for retrofit work and are applied to the exposed surfaces of the door and frame. Also available in heavy-duty models

Features:

  • Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
  • Applied to conceal both leaves
  • Standard model: 10 fasteners are required for each leaf
  • Standard duty hinge. 6" between bearing centers
  • Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
  • Special hinge reinforcements are not required. Hollow metal door and frame manufacturers

Continuous Hinge Handing Chart
