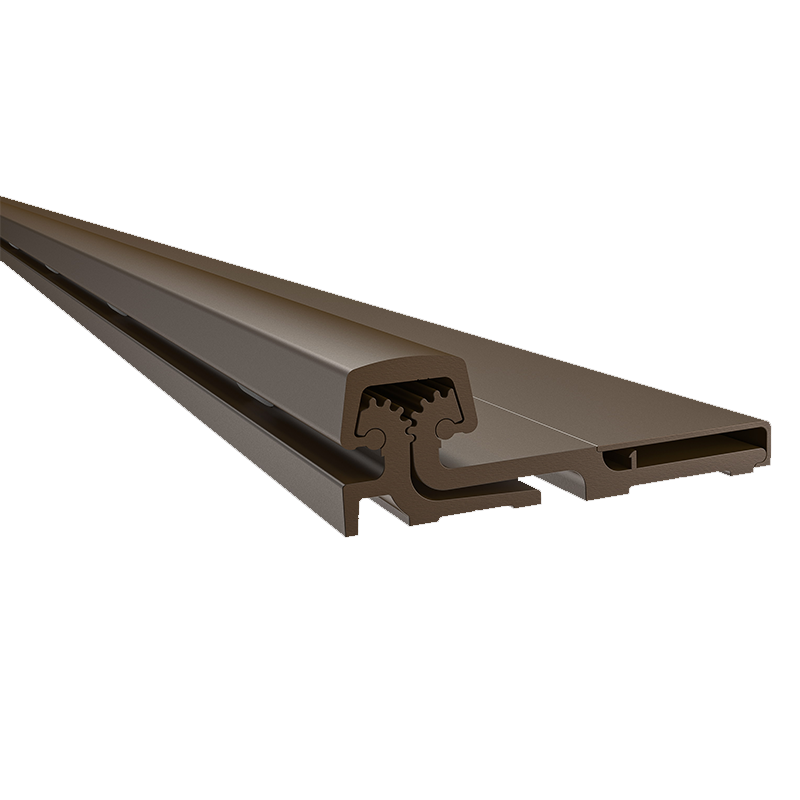

Pemko DFS83HD1 Full-Surface Heavy Duty Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"

Pemko DFS83HD1 Full-Surface Heavy Duty Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"

Pemko's heavy-duty anodized aluminum Full Surface continuous geared hinges are designed mainly for retrofit work and are applied to the exposed surfaces of the door and frame

Features:

• Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
• Applied to conceal both leaves
• Standard model: 10 fasteners are required for each leaf
• Standard duty hinge. 6" between bearing centers
• Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
• Special hinge reinforcements are not required. Hollow metal door and frame manufacturers
