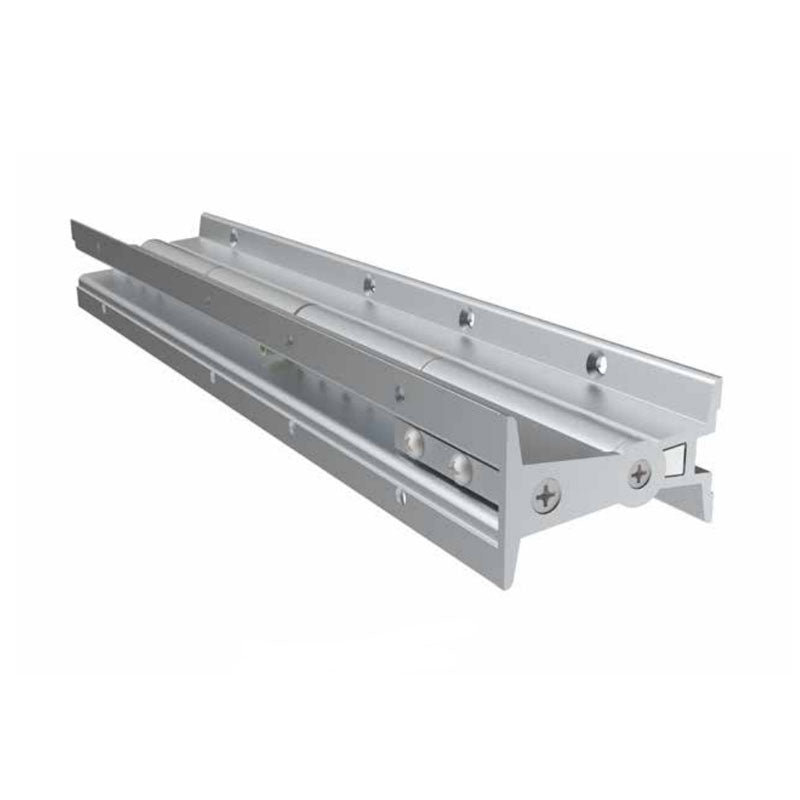

The Pemko DSH1000-84 Double Swing Hinge is a  Pin & Barrel Hinge, has an 84" Height, for door weights up to 600 lbs, for use with doors up to 4'0" maximum door width, comes with all metal TORX Screws, and has a Clear Aluminum Finish.

This Product Requires an Order Form to be filled out and submitted, at purchase.
Download Order Form: Click Here

• Continuous pin & barrel hinge
• Swings 100 degrees maximum in either direction
• Hard stop to eliminate finger pinching
• ANSI/BHMA A156.26 Grade 1 certified
• Combined with the Pemko Emergency Release Stop (ERS) or ERSMP (multipoint version)
• Accepted by the New York State Office of Mental Health (OMH) for use in a high-risk area
• Supports weights up to 600 lbs. 4'0" maximum door width
• Material to be extruded aluminum 6063-T6 alloy
• .250" diameter stainless pin (rod)
• Each knuckle is 4", including a nylon bearing at each separation for a quiet, smooth, self-lubricating operation
• Exterior barrel diameter .750" (3/4")
• Hinges certified ANSI/BHMA Standard A 156.26 Grade 1
• Symmetrically templated hole pattern
