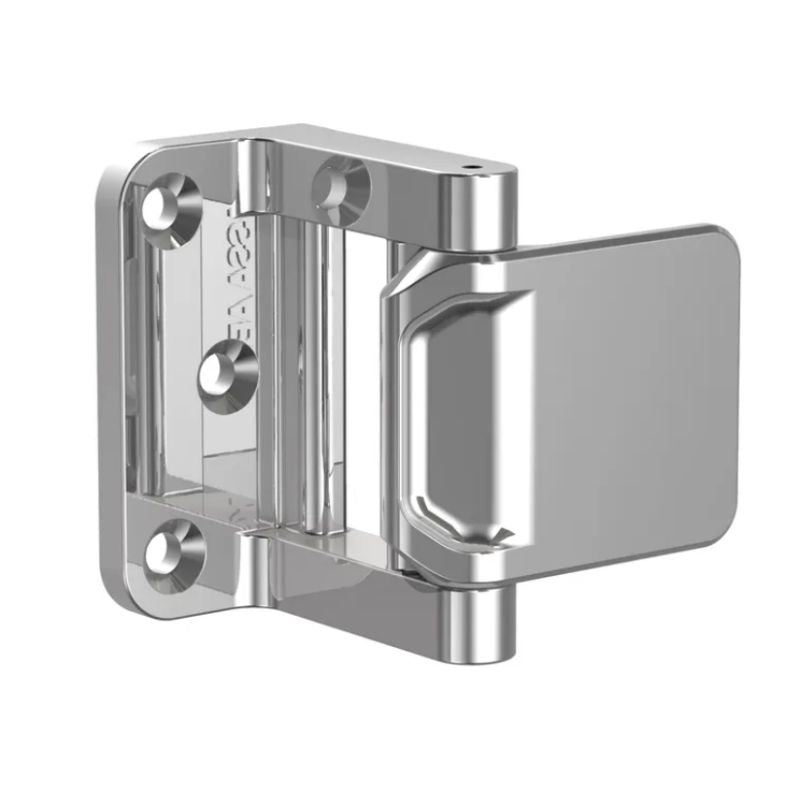

Pemko PDLAA Privacy Door Latch

Product Specs

• Base Material: Cast zinc
• Door Type: Aluminum Doors, Wood, Metal
• Height: 2 3/16"
• Latch Face Height: 1 3/4"
• Latch Face Length: 2 3/4"
• Mounting Type: Screw applied
• Projection: 1 3/4"
• Weight: 0.75lbs.
• Width: 1 1/2"

Pemko PDLAA Privacy Door Latch, 1 1/2” Width, 2 3/16” Height

Upgrade your interior corridor openings with the Pemko PDLAA Privacy Door Latch. Its sleek and contemporary design adds a touch of style while maintaining easy operation. Compatible with existing accessories and easily retrofittable, this latch is a must-have for hotels and dormitories. Upgrade to the new and improved Privacy Door Latch now.

PDLAA Features & Benefits

• A new, modern design to the Pemko PDLAA offers a refreshed aesthetic appearance
• ADA compliant when installed in accordance with ADA guidelines.
• For use with UL Classified fire doors for use with hollow metal steel composite type fire doors rated up to and including 3 hrs.Wood composite type fire doors rated up to and including 1-1/2 hrs and 20 minutes without hose stream.
• Supplied with #12 x 1-3/4" Phillips flat head SMS screws
• Release tool for PDLAA (PDLAATOOL) is available from the factory
• Cannot be used to keep door ajar
• Does not interfere with proper door operation

• Silicone bumpers on the latch provide additional protection for the door

• Simple to operate - easy for guests and residents to use
• Small footprint
• Easy to install and saves time on the job
• Enhanced in-room privacy allows for visitor identification

PDLAA Certifications

• UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
• Americans with Disabilities Act (ADA) Compliant
• NFPA 80-2016 5.1.2.3.3
• NFPA 80-2016 5.2.3.5.2(10)
