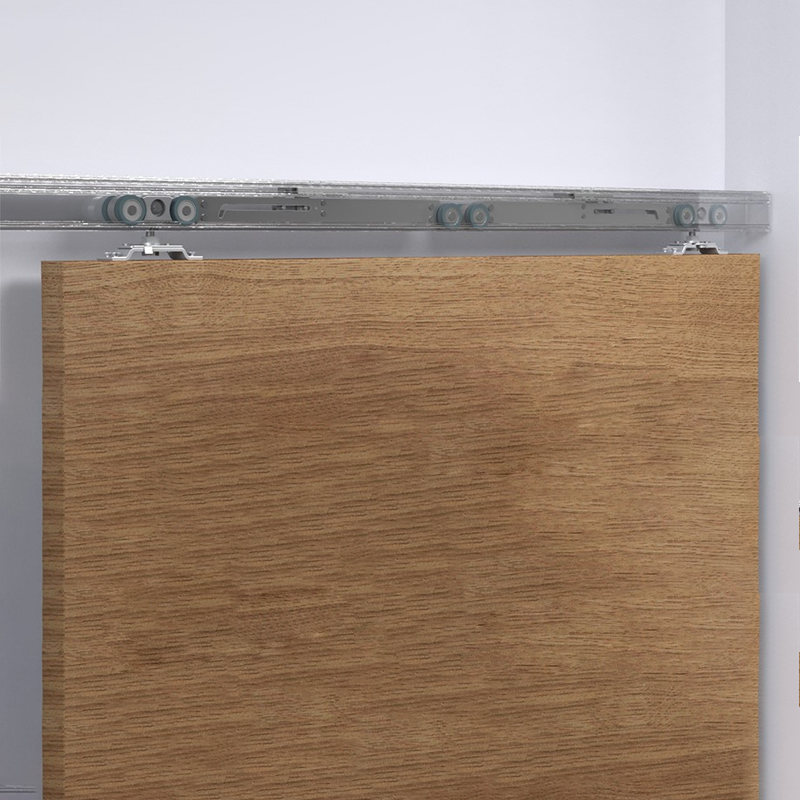

The Pemko SC-PF28200A7296 is a Pocket Frame Kit with Soft Close, for openings 72" x 96", for 1 3/8" to 1 3/4" thick doors. The Kit includes header track assembly (1), aluminum cased wood studs (4), and Pre-Mounted Header Brackets. [2] 200 LBS Cap Hangers, [2] Floor Cleats

Pocket Frame Kit Includes:

• 1 -Header Track Assembly
• 4 - PFAS_ Aluminum Cased Wood Studs
• 2 - PFHB-1 and PFHB-2 Pre-Mounted Header Brackets
• 2 - H222R1 Hangers
• 2 - PFFC-8 Floor Cleats
• 1 - PFBS Pocket Frame Bumper Stop
• 1 - Bottom Guide PFBG-8 Pocket Frame Bottom Guide for 1 3/8" thick doors mounting hardware, and BG-26 Pocket Frame Bottom Guide for 2x6 and SP6 kit

Features:

• Door actuation requires less than 5 lbs of horizontal force, meeting ADA requirements.
• Suitable for 1 3/8" to 1 3/4" doors. Doors over 1 3/8" must have PF134 kit when being used in 2x4 stud constructed walls.
• Extruded, non-rusting aluminum track. Solid wood studs encased in extruded aluminum reduce corrosion and minimizes bowing effects.
• Knock-down construction.
• Extruded, aluminum reinforced studs (minimizes bowing effect).
• Rough frame opening dimensions: 2x door width + 1" - and - door height + 5".
• Pocket frame kit (PFK) includes header track assembly (1), aluminum cased wood studs (4), pre-mounted header brackets (2), 200 lb. hangers (2), and floor cleats (2).
• The Assembly kit includes mounting hardware, bumper stops, bottom guide*, and an adjusting wrench.
• Systems available for 2 x 4 and 2 x 6 walls. Can be trimmed in the field.
• SC- Soft Close and Soft Open options. For doors up to 200 lbs. each, 35-1/4" minimum door width
