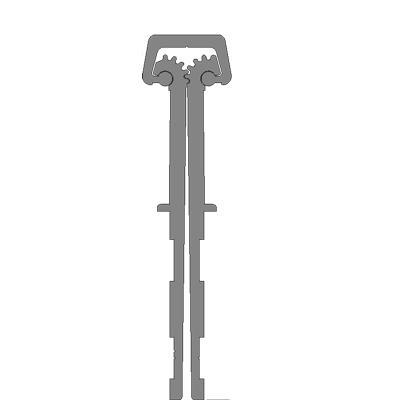

Pemko WTCFM83HD1 Continuous Geared Hinge Wide Throw Full-Mortise Heavy Duty Clear Anodized Finish Fire Rated - UL10C - Positive Pressure, Pemko's WTCFM83HD1 heavy-duty anodized aluminum Wide Throw Full Mortise continuous geared hinges are designed mainly for new door applications that require extra clearance due to special frame, door or wall design
Features WTCFM83HD1
- Applied to conceal both leaves
- More clearance between the door and frame allows your door to open 180 degrees
- Available only in heavy-duty (HD1) to support larger doors
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
- Heavy-duty models: 20 fasteners required for each leaf
- Heavy-duty hinge (HD1): 3" between bearing centers
- Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also, wood core rated up to and including 20 minutes without hose stream
- Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
Specifications
| Finish: | C - Clear Anodized |
| Length: | 83" |
| Width: | 5/16" (7.9 mm) (between frame edge and door edge, square edge door applications) 3/8" (9.5 mm) (between frame edge and door edge, beveled edge door applications) Cap Width: 25/32" (19.8 mm) |
| Height: | 1-9/16" (39.7 mm) (to top cap/frame edge & door edge sides) 1-11/16" (42.9 mm) (to flange/door edge side) |
| Manufacturer: | Pemko |
Certifications
| BHMA: | BHMA Certified |
| UL: | Fire Rated - UL10C - Positive Pressure |
| Other Certifications: | PemkoHinge Fire Rating - UL76Y2 |
