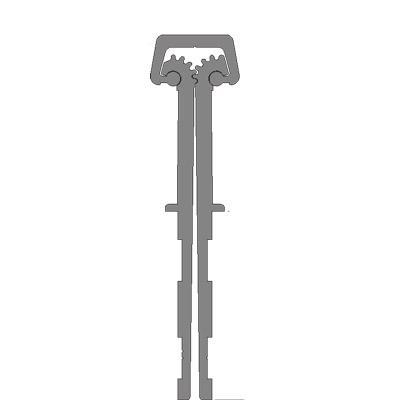

Pemko's heavy duty anodized aluminum Wide Throw Full Mortise continuous geared hinges are designed mainly for new door applications that require extra clearance due to special frame, door or wall design
Features
Applied to conceal both leaves
More clearance between the door and frame allows your door to open 180 degrees
Available only in heavy duty (HD1) to support larger doors
Fasteners are No. 12-24 x 7/16" FHUC, Type C, threadforming
Heavy duty models: 20 fasteners required for each leaf
Heavy duty hinge (HD1): 3" between bearing centers
Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also wood core rated up to and including 20 minutes without hose stream
Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80
Specifications
Finish:
D - Dark Bronze Anodized
Length:
95"
Width:
5/16" (7.9 mm) (between frame edge and door edge, square edge door applications) 3/8" (9.5 mm) (between frame edge and door edge, beveled edge door applications) Cap Width: 25/32" (19.8 mm)
Height:
1-9/16" (39.7 mm) (to top cap/frame edge & door edge sides) 1-11/16" (42.9 mm) (to flange/door edge side)
